X480

Tesla Part Number

1115406-00-A

Connector

HIROSE ZE05-8DS-HU

Color

BK

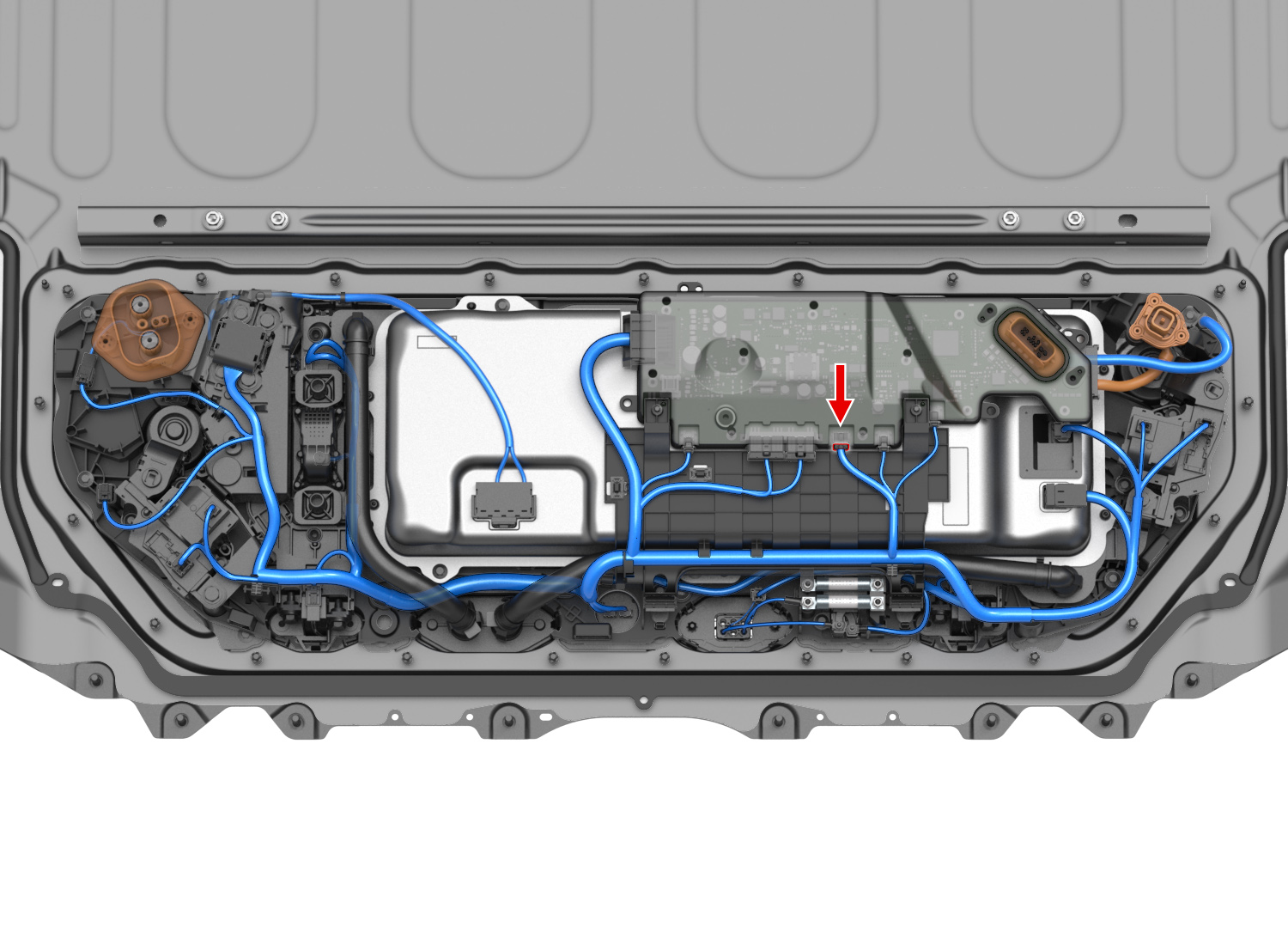

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	HIROSE	ZE05-2022SCF	0.64x0.64	WH	0.35			X469	2
2	unused
3	HIROSE	ZE05-2022SCF	0.64x0.64	WH	0.35			X469	1
4	HIROSE	ZE05-2022SCF	0.64x0.64	WH	0.35			X469	3
5	HIROSE	ZE05-2022SCF	0.64x0.64	WH	0.35			X469	4
6	HIROSE	ZE05-2022SCF	0.64x0.64	WH	0.35			X469	5
7	HIROSE	ZE05-2022SCF	0.64x0.64	WH	0.35			X469	6
8	HIROSE	ZE05-2022SCF	0.64x0.64	WH	0.35			X469	7
