X487

Tesla Part Number
1704231-00-A
Connector
DELPHI 13623745
Color
BK

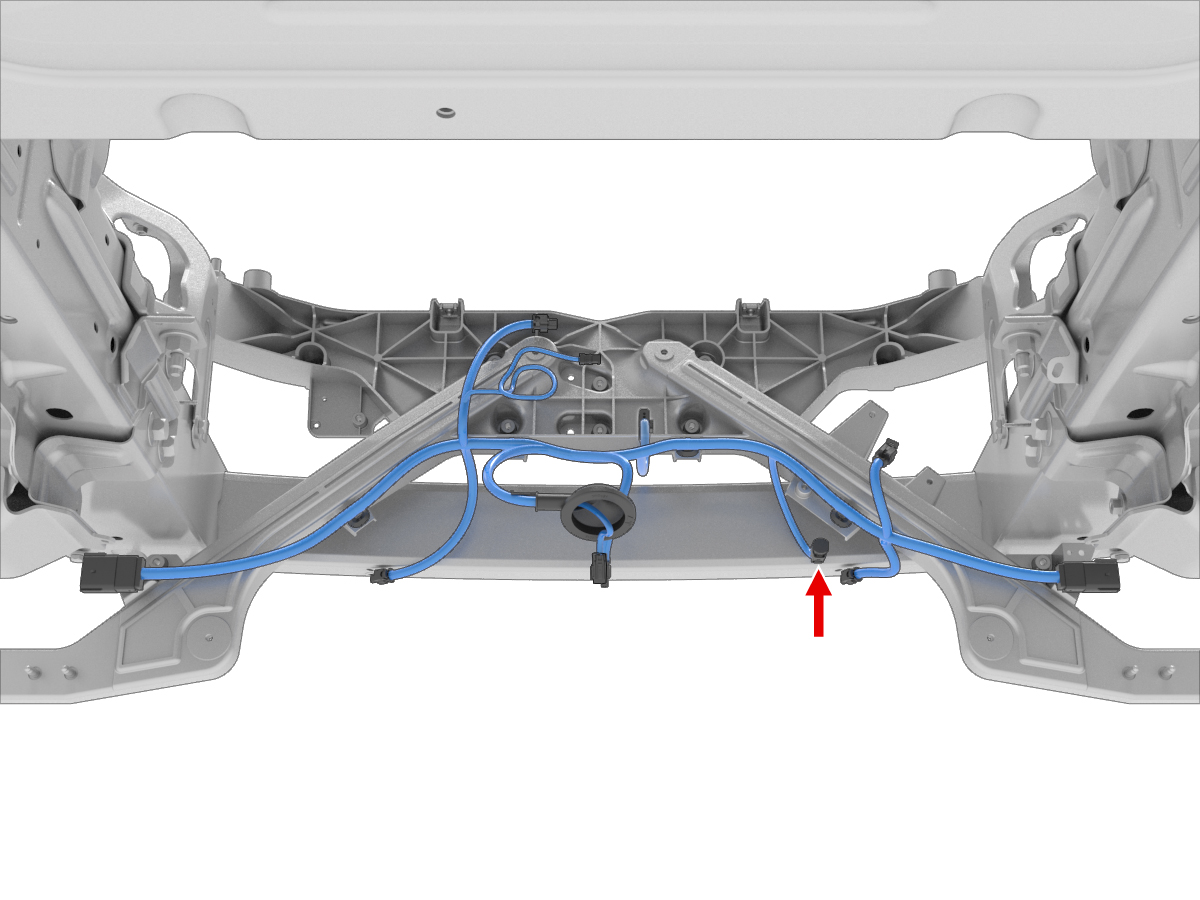

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-962885-10.63x0.63FSBK0.35AMP967067-2
2AMP5-962885-10.63x0.63FSBN0.35AMP967067-2X906M9
3AMP5-962885-10.63x0.63FSBU0.35AMP967067-2X906M16
