X493

Tesla Part Number
1092852-00-A
Connector
AMP 3-1355397-3
Color
BU

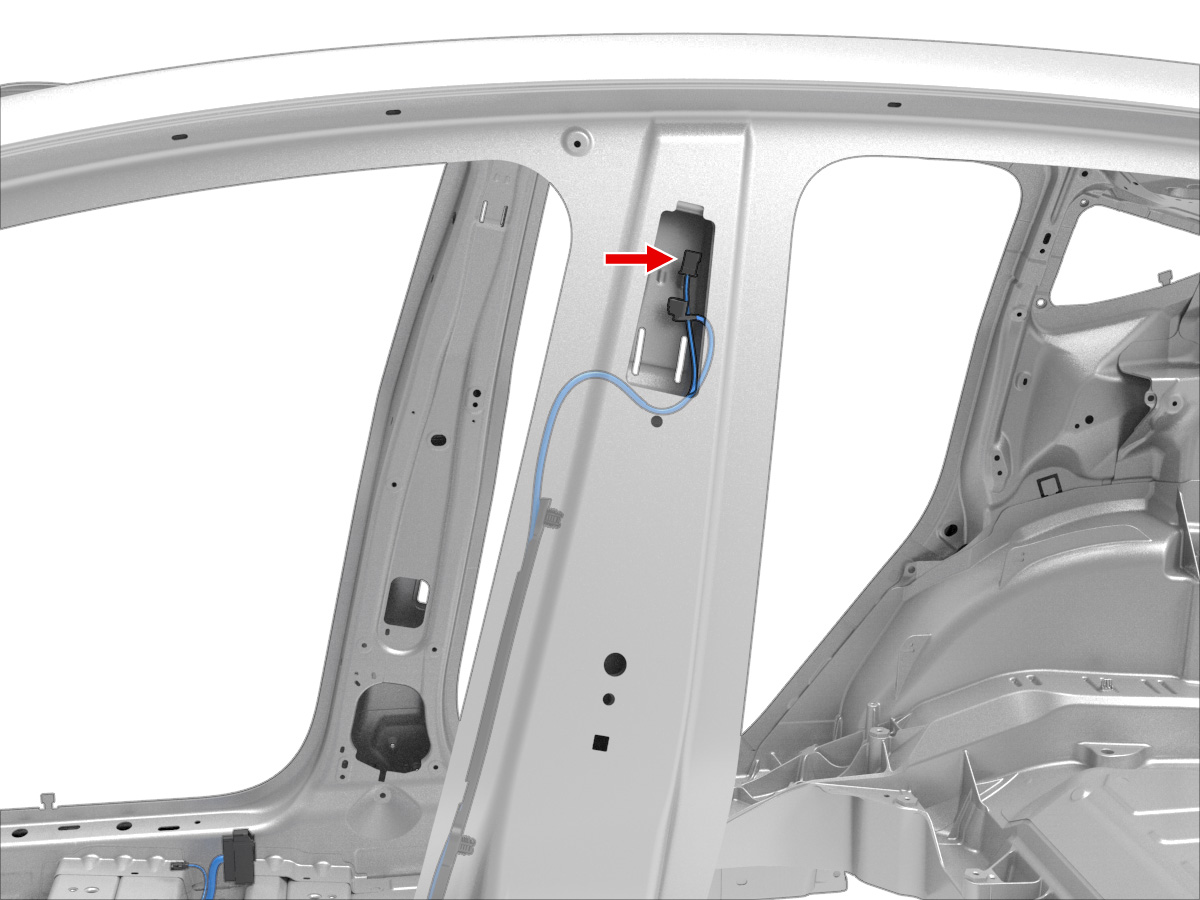

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FBU0.35X030A12
2AMP5-928999-10.63x0.63FBK0.35G0316
3AMP5-928999-10.63x0.63FVT0.35X930F12
4AMP5-928999-10.63x0.63FGN0.35X930F13
