X494

Tesla Part Number
1092852-00-A
Connector
AMP 3-1355397-3
Color
BU

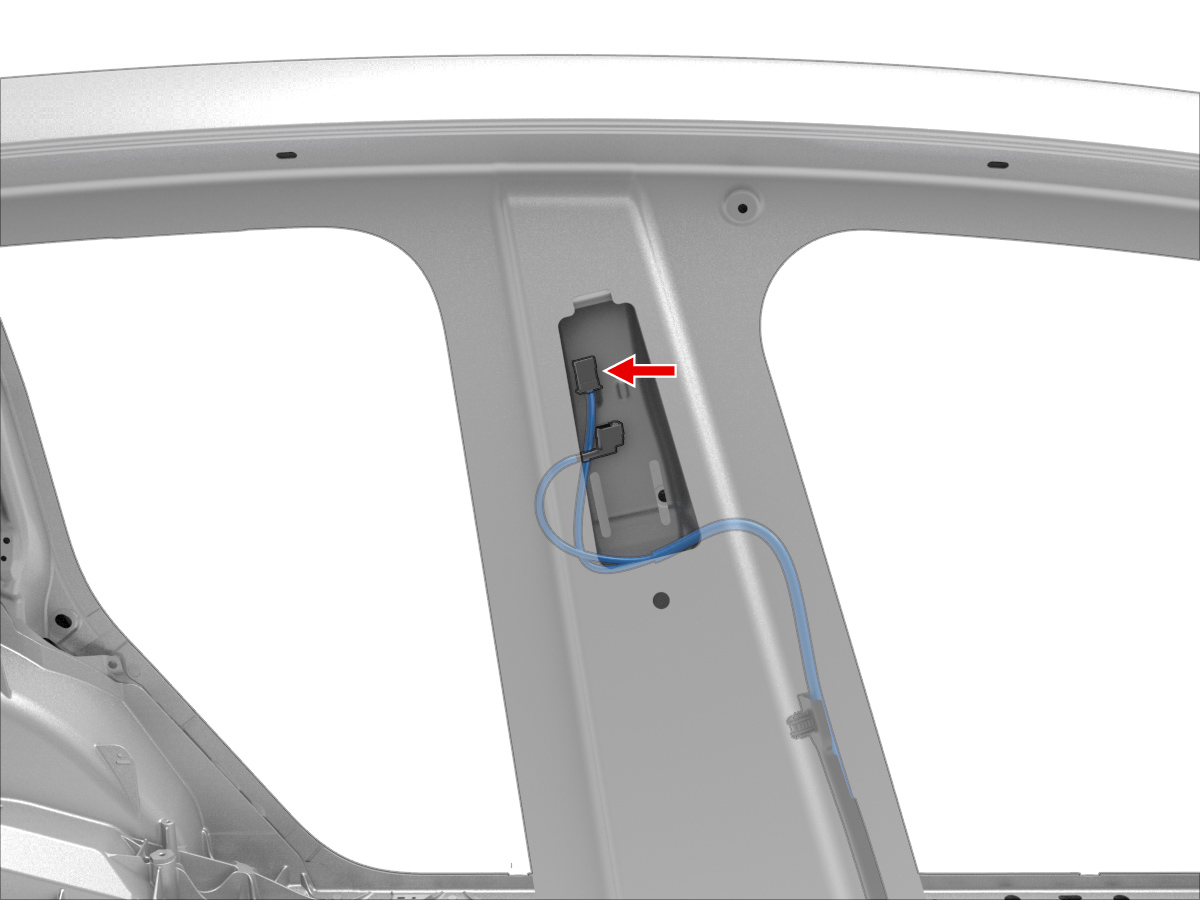

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FYE0.35X050B10
2AMP5-928999-10.63x0.63FBK0.35G03212
3AMP5-928999-10.63x0.63FBU0.35X935M45
4AMP5-928999-10.63x0.63FWH0.35X935M44
