X508

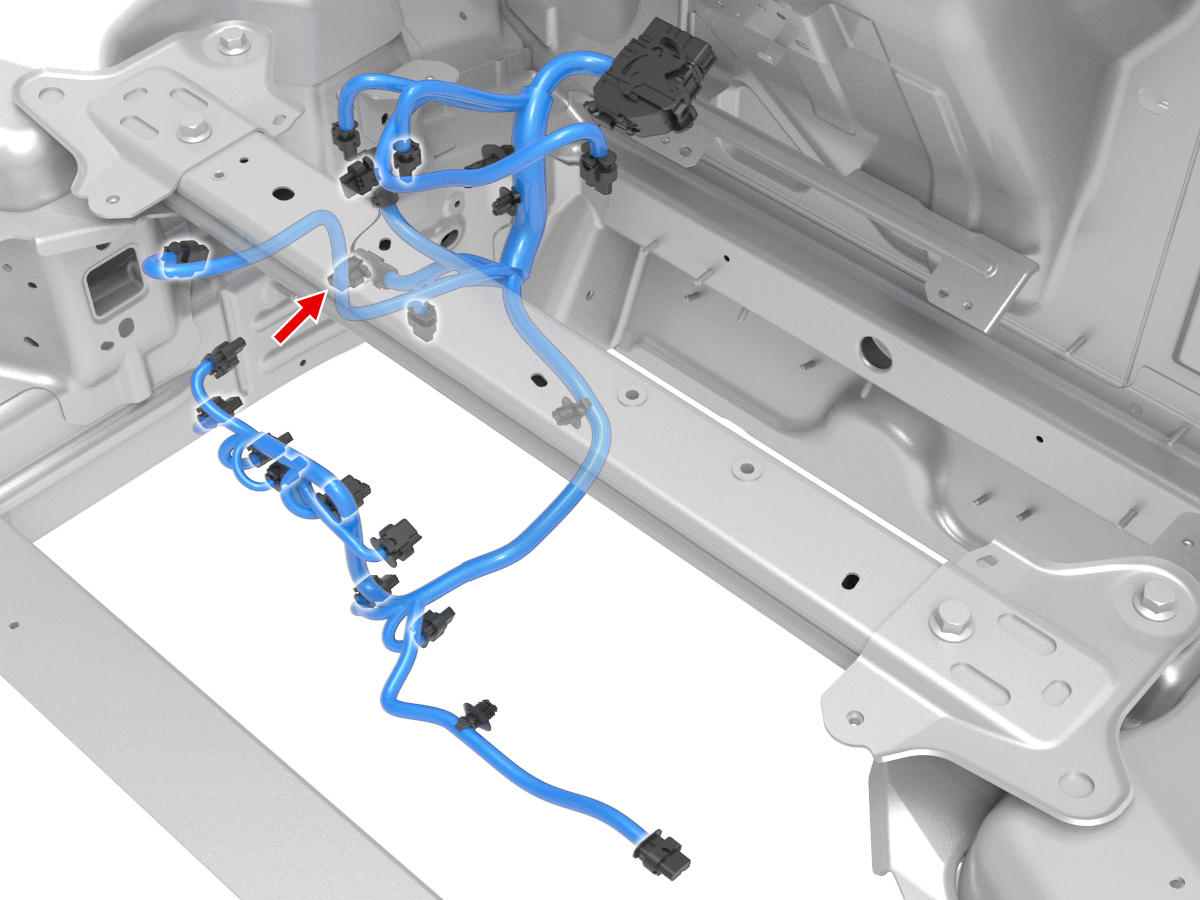

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452671-1 | 1.2x0.6FS | RD | 1.00 | AMP | 967067-1 | X021 | Q3 |
| 2 | AMP | 7-1452671-1 | 1.2x0.6FS | YE | 1.00 | AMP | 967067-1 | X021 | Q2 |
| 3 | AMP | 7-1452671-1 | 1.2x0.6FS | BU | 1.00 | AMP | 967067-1 | X021 | Q1 |
| 4 | AMP | 7-1452668-1 | 1.2x0.6FS | GY | 0.50 | AMP | 967067-1 |
