X518

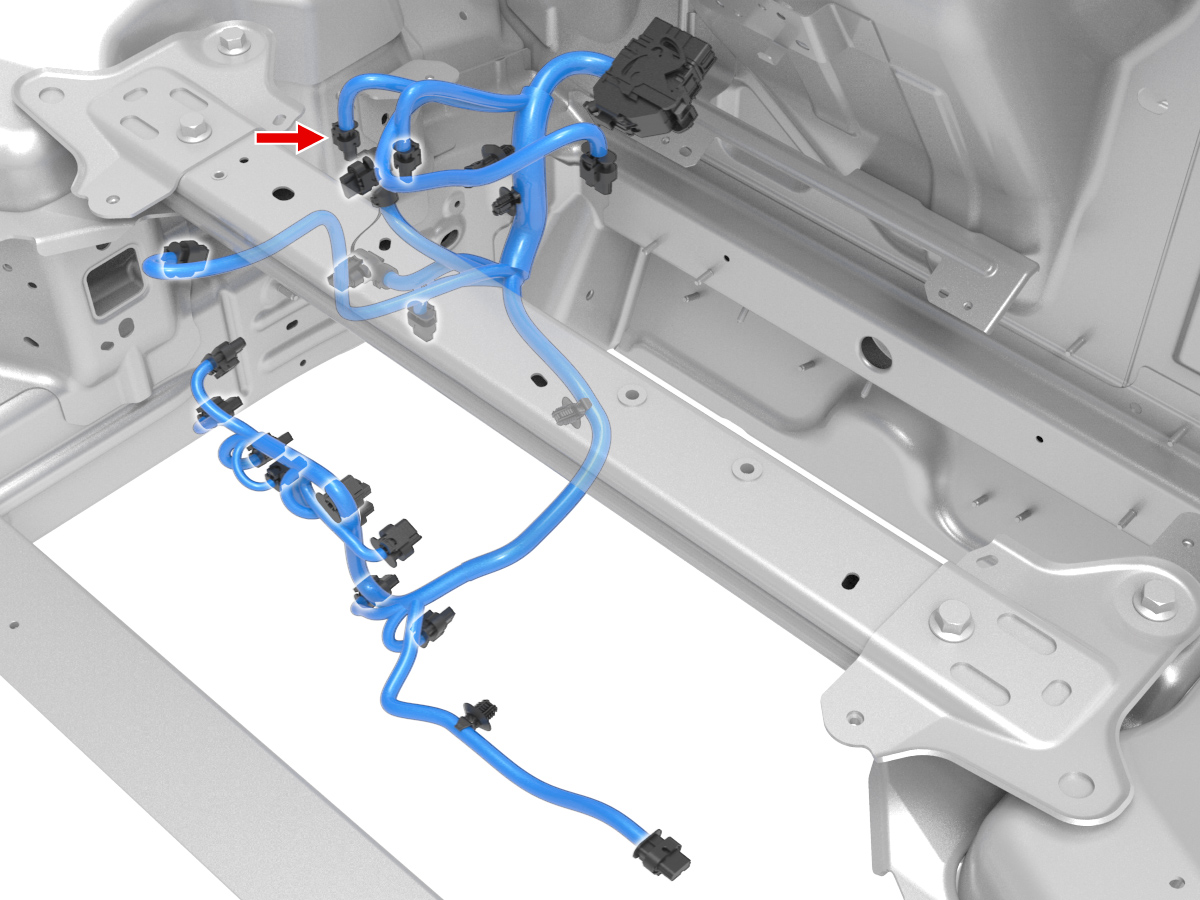

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-1 | 1.2x0.6FS | YE | 0.50 | AMP | 967067-1 | X021 | G1 |
| 2 | AMP | 7-1452668-1 | 1.2x0.6FS | RD | 0.50 | AMP | 967067-1 | X021 | H1 |
