X561

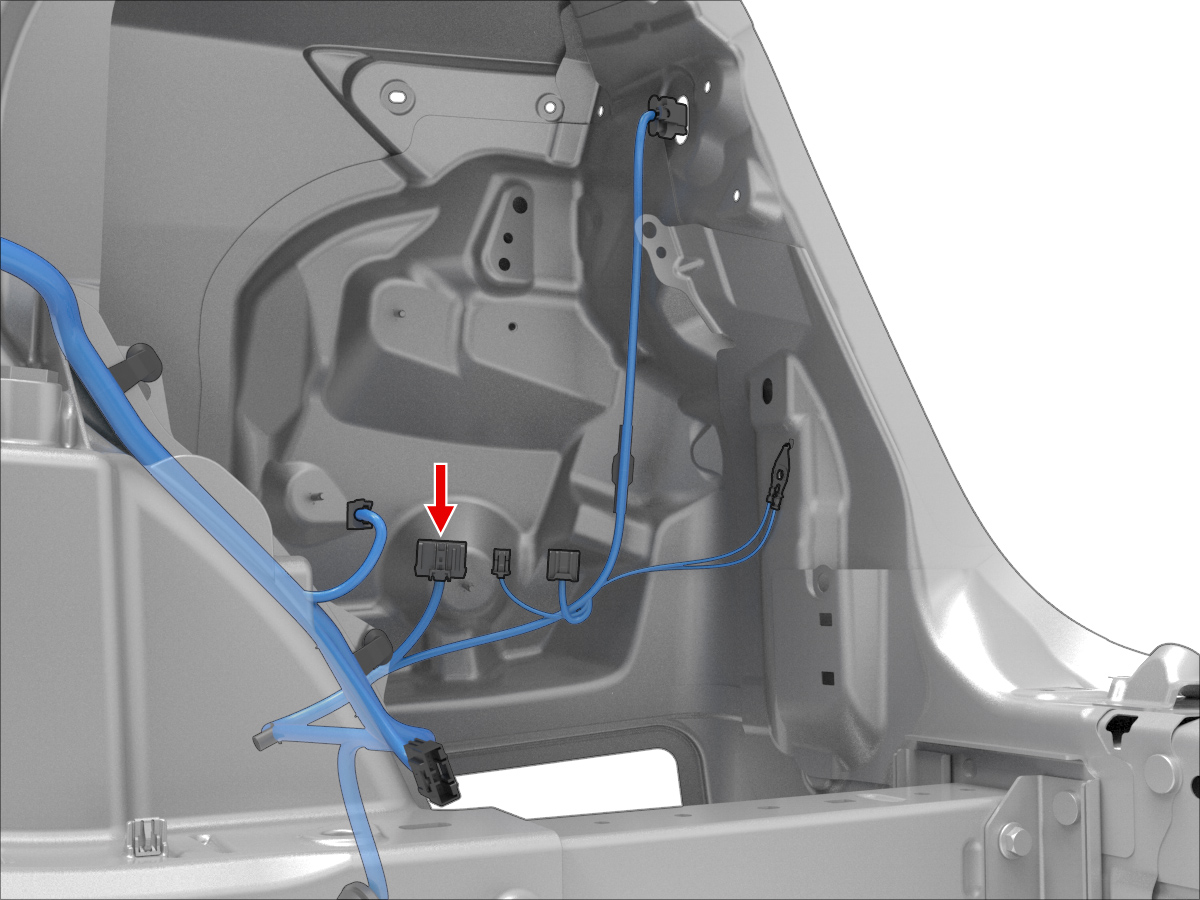

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4272-02 | 2.8x0.8F | TN | 2.00 | X051 | 36 | ||
| 2 | YAZAKI | 7116-4272-02 | 2.8x0.8F | GY | 2.00 | X051 | 20 | ||
| 3 | YAZAKI | 7116-4272-02 | 2.8x0.8F | RD | 1.50 | X600 | 2 | ||
| 4 | YAZAKI | 7116-4272-02 | 2.8x0.8F | VT | 1.50 | X600 | 3 | ||
| 5 | YAZAKI | 7116-4113-02 | 2.8x0.8F | BK | 3.00 | G042 | 3 | ||
| 6 | YAZAKI | 7116-4113-02 | 2.8x0.8F | RD | 3.00 | X050B | 11 | ||
| 7 | YAZAKI | 7116-4272-02 | 2.8x0.8F | BU | 2.00 | X935M | 2 | ||
| 8 | YAZAKI | 7116-4272-02 | 2.8x0.8F | WH | 2.00 | X935M | 1 | ||
| 9 | YAZAKI | 7116-4272-02 | 2.8x0.8F | GN | 1.50 | X600 | 1 | ||
| 10 | YAZAKI | 7116-4272-02 | 2.8x0.8F | BN | 1.50 | X600 | 4 | ||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
