X586

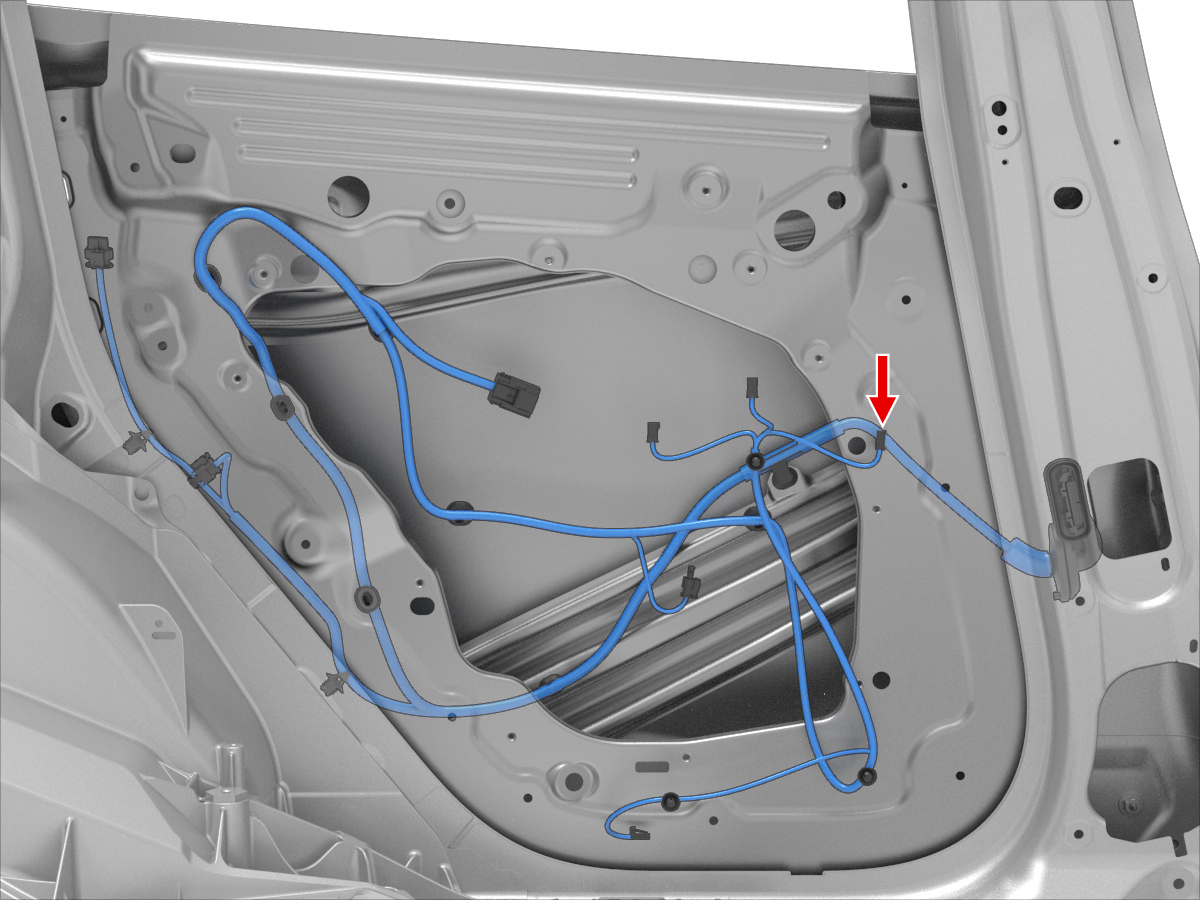

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13580635 | 0.64x0.64F | RD | 0.50 | X924F | 24 | ||
| 2 | DELPHI | 13580635 | 0.64x0.64F | BK | 0.50 | X924F | 25 |
