X614

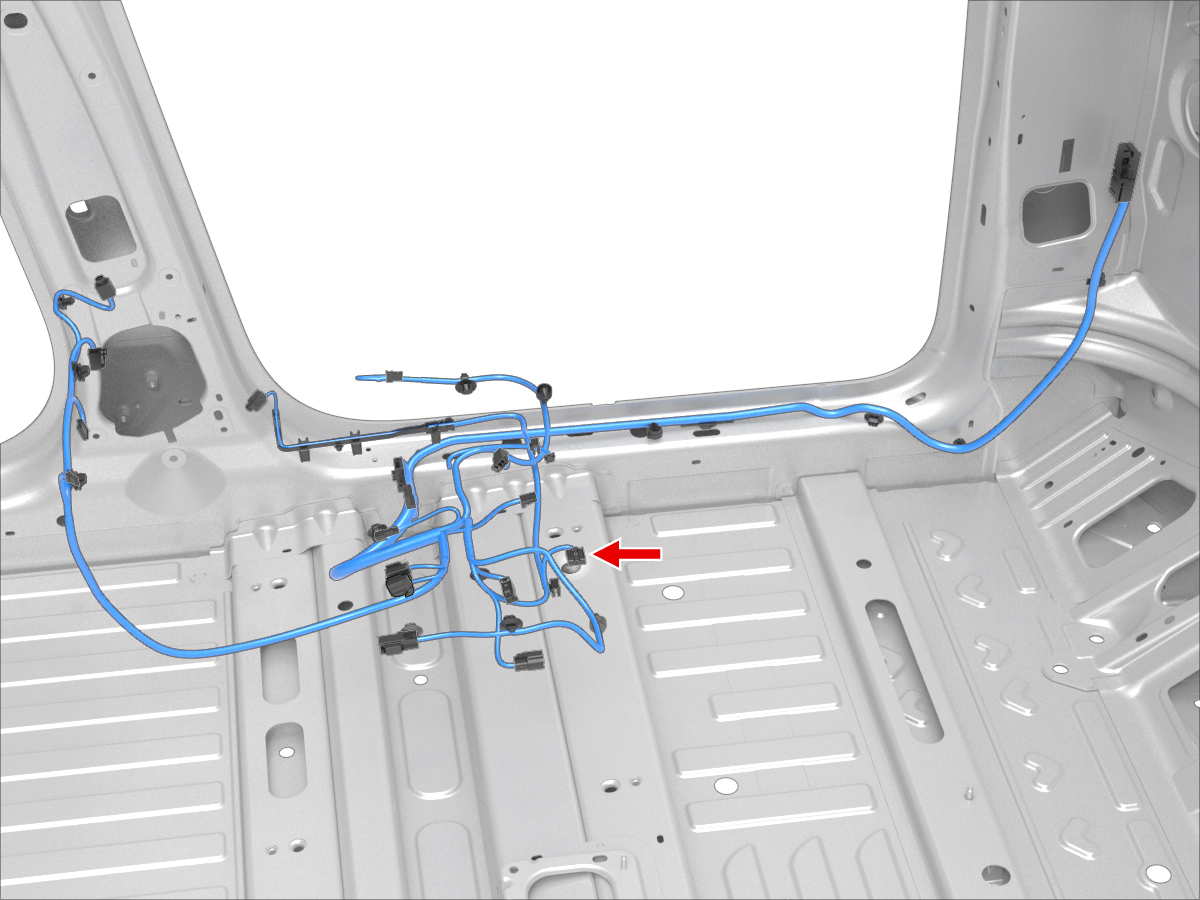

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 968075-2 | 2.8x0.6F | BU | 2.00 | X032 | 12 | ||
| 2 | AMP | 5-928999-1 | 0.63x0.63F | BN | 0.35 | ||||
| 3 | unused | ||||||||
| 4 | AMP | 5-928999-1 | 0.63x0.63F | WH | 0.35 | X032 | 5 | ||
| 5 | AMP | 968075-2 | 2.8x0.6F | GY | 2.00 | X032 | 13 | ||
