X652

Tesla Part Number
1015115-00-A
Connector
AMP 936119-1
Color
BK

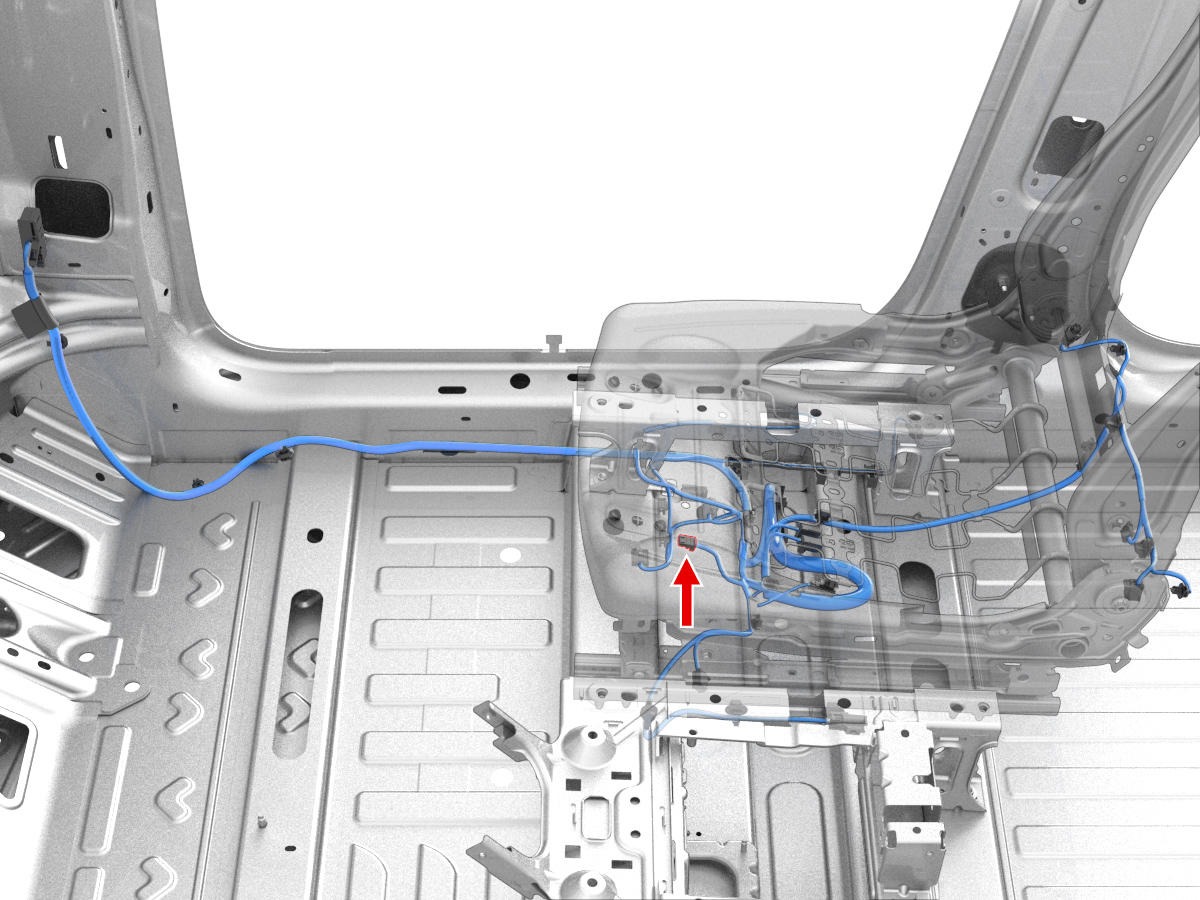

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FGN0.35X05245
2AMP5-928999-10.63x0.63FDKGN/WH0.35X05244
3AMP5-928999-10.63x0.63FBN0.35X05222
4AMP5-928999-10.63x0.63FBU0.35X05220
