X668

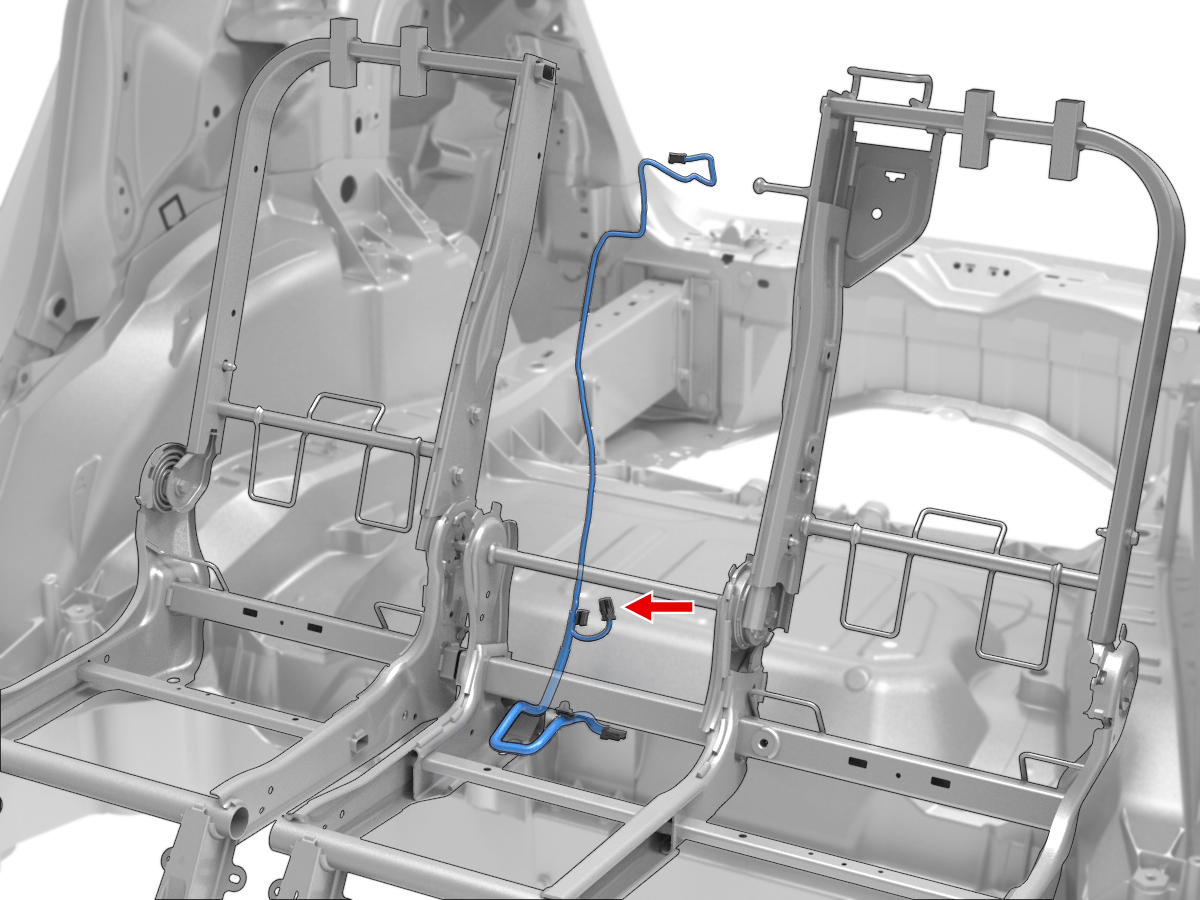

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 964280-2 | 2.8x0.8F | RD | 0.50 | X944F | 2 | ||
| 2 | AMP | 964280-2 | 2.8x0.8F | VT | 0.50 | X944F | 1 |
