X669

Tesla Part Number
1094777-00-B
Connector
YAZAKI 7283-6160
Color
NA

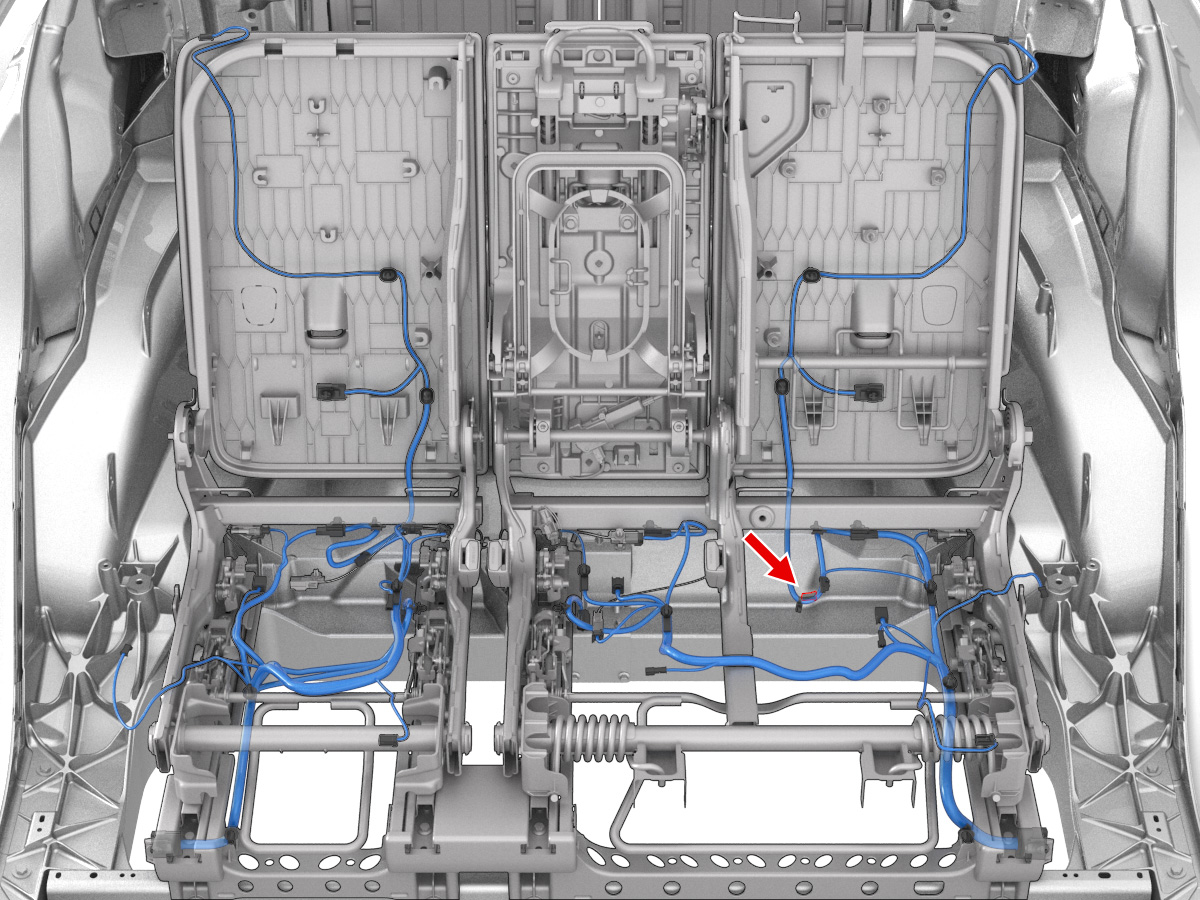

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1YAZAKI7116-40202.3FGY0.50X943M_13
2YAZAKI7116-40202.3FBN0.50X943M_12
