X672

Tesla Part Number
1042591-02-A
Connector
SUMITOMO 6098-5702
Color
BU

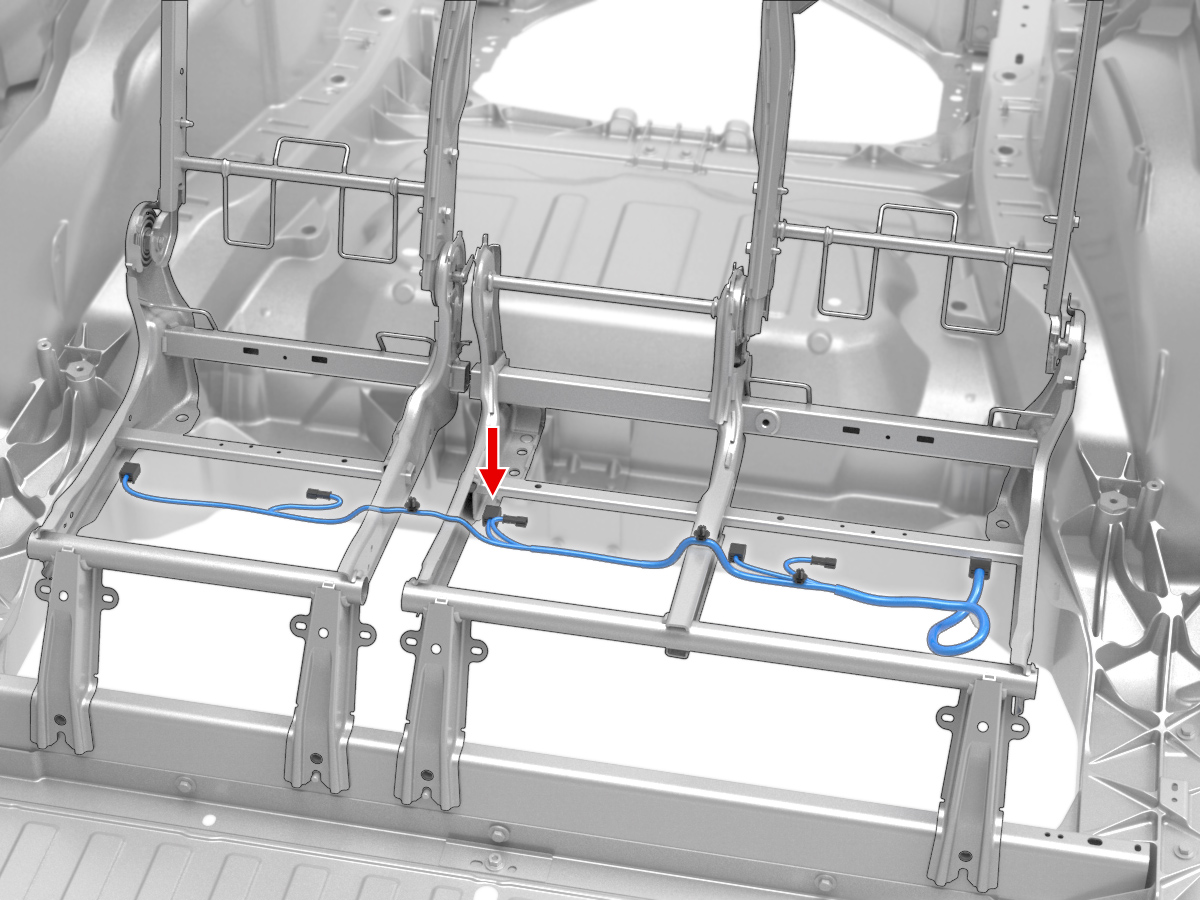

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8240-02151.5x0.64FGY0.50X945F2
2unused
3unused
4SUMITOMO8240-02151.5x0.64FBK0.50
5SUMITOMO8240-02151.5x0.64FYE0.35X945F8
6SUMITOMO8240-02151.5x0.64FBK0.35
7unused
8unused
