X690

Tesla Part Number

1116026-00-A

Connector

MOLEX 503149-1000

Color

BG

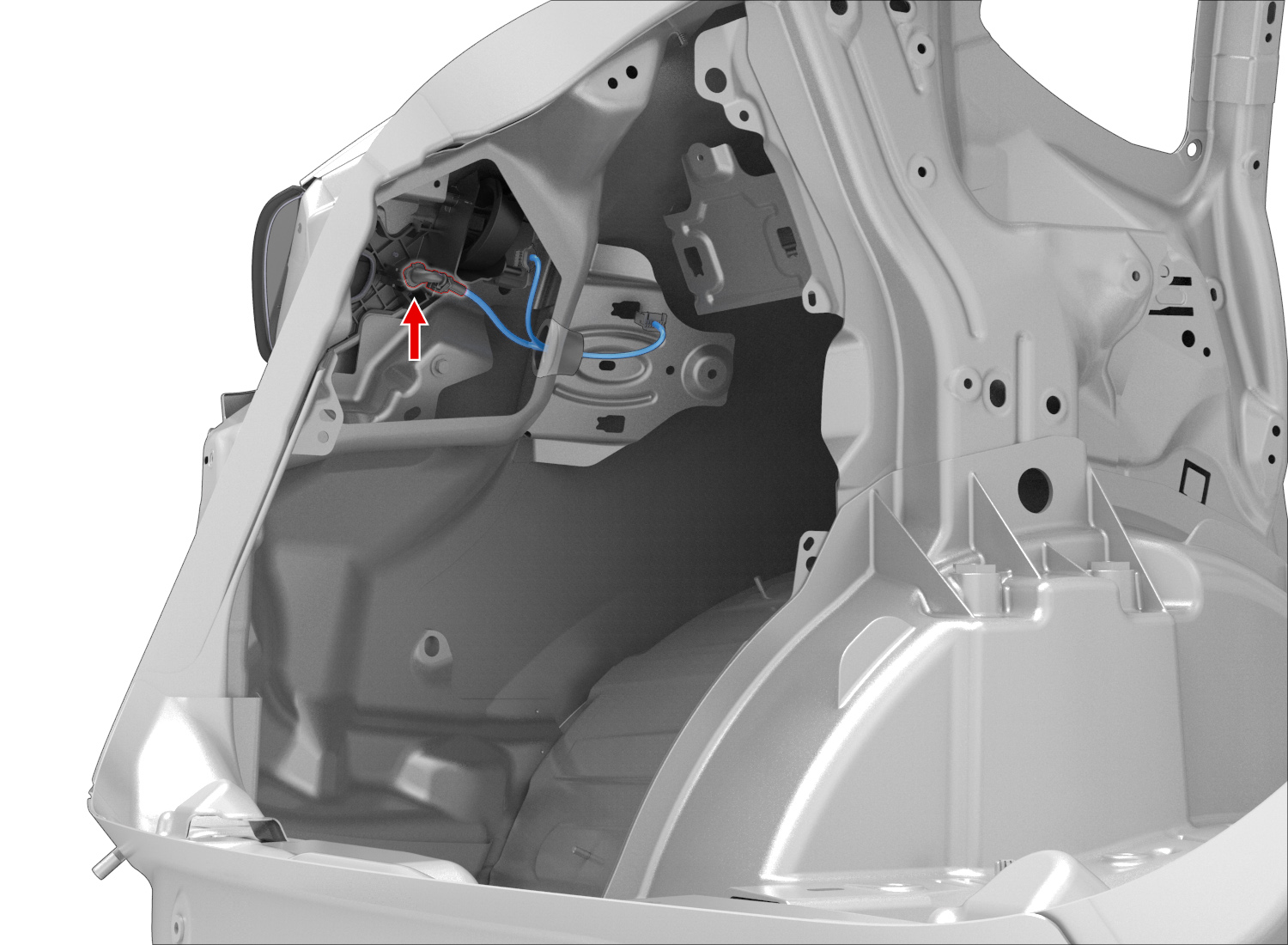

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	502579-0000	1.5	BN	0.13			X687	2
2	MOLEX	502579-0000	1.5	WH	0.13			X687	12
3	MOLEX	502579-0000	1.5	GY	0.13			X687	14
4	MOLEX	502579-0000	1.5	OG	0.13			X687	3
5	MOLEX	502579-0000	1.5	VT	0.13			X687	13
6	MOLEX	502579-0000	1.5	RD	0.13			X687	6
7	MOLEX	502579-0000	1.5	YL	0.13			X687	4
8	MOLEX	502579-0000	1.5	GN	0.13			X687	7
9	MOLEX	502579-0000	1.5	BK	0.13			X687	1
10	MOLEX	502579-0000	1.5	BU	0.13			X687	8
