X866M

Tesla Part Number
1610865-03-A
Connector
DELPHI 33340366
Color
BO

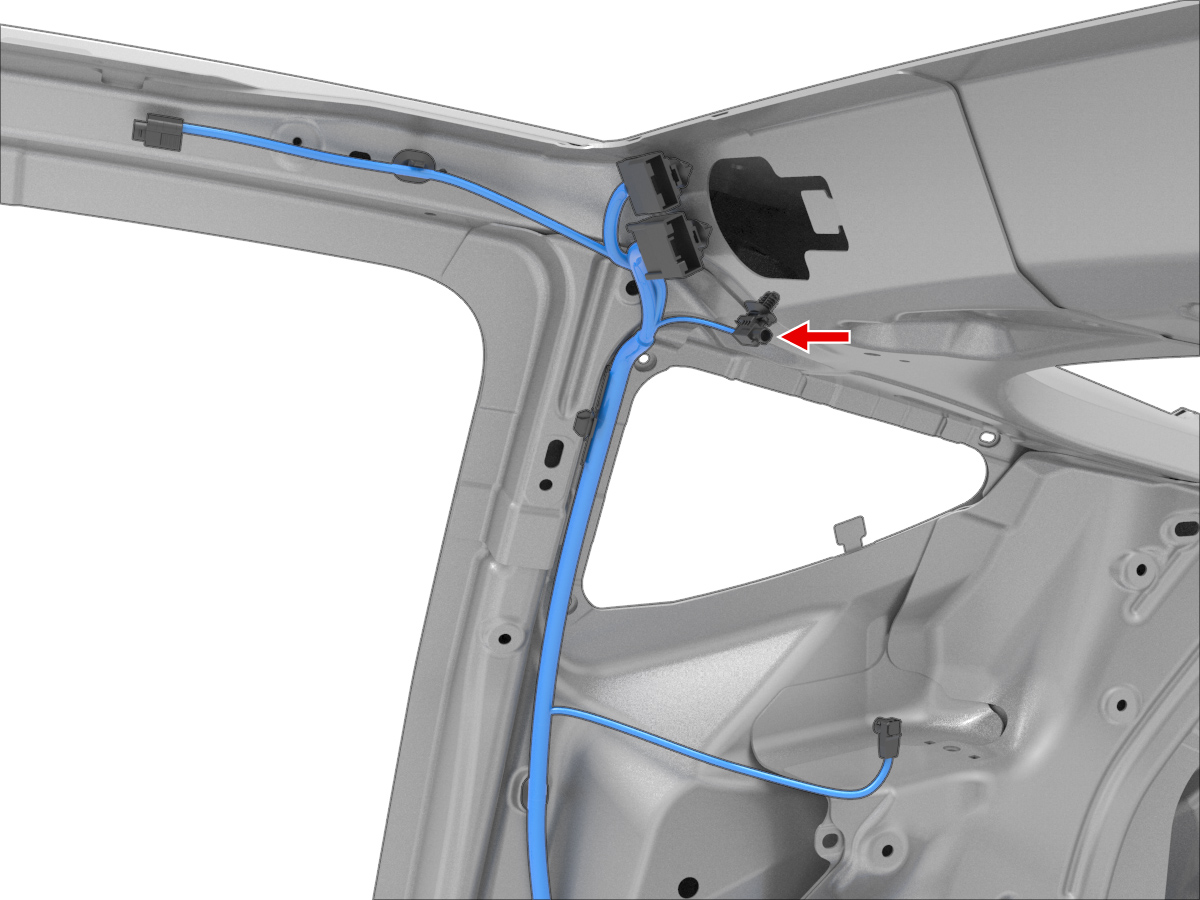

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI33351759COAXBKD302X8301
