X896

Tesla Part Number
1055888-00-A
Connector
ROSENBERGER 59Z027-001-A
Color
BK

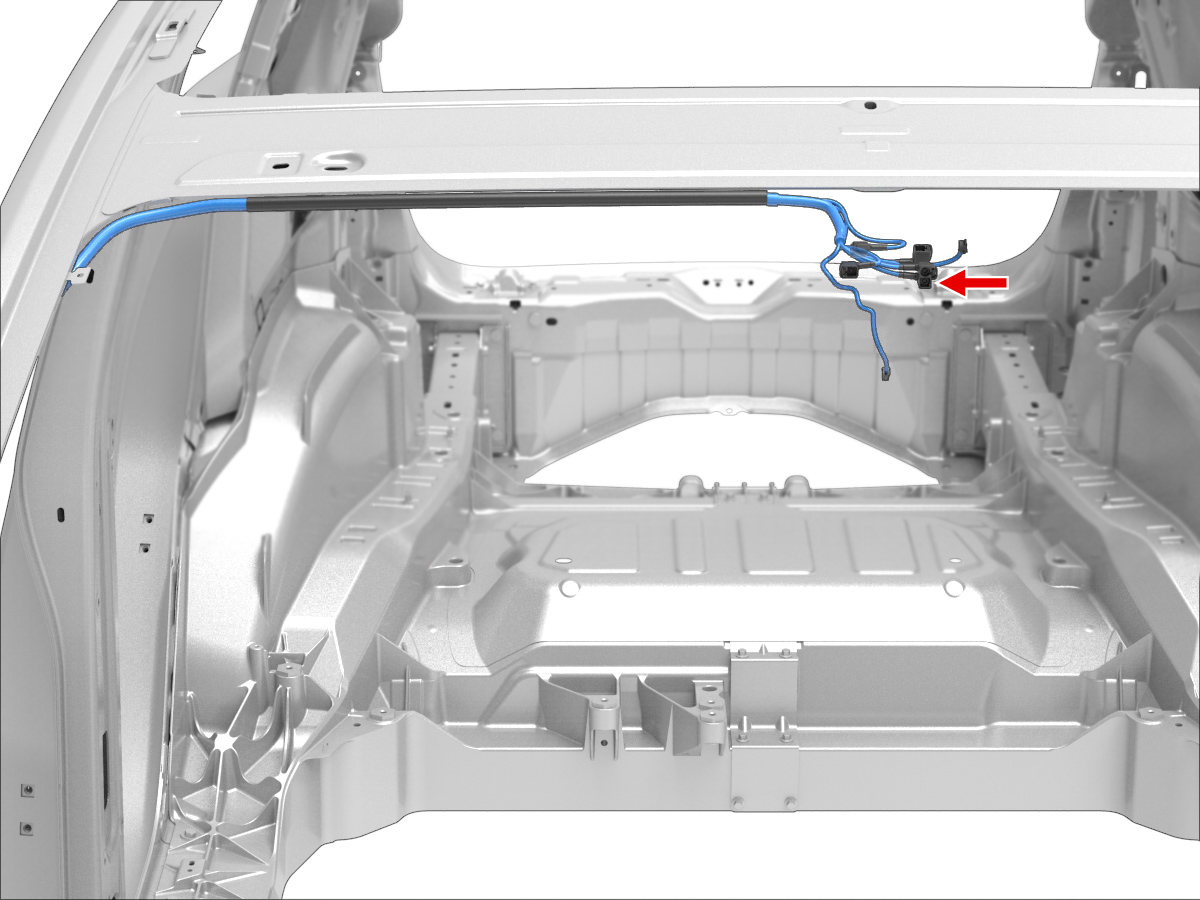

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1BKD462X886M1
2BKD462X886M2
