X901M

Tesla Part Number

1055685-10-A

Connector

MOLEX 33482-2369

Color

BK

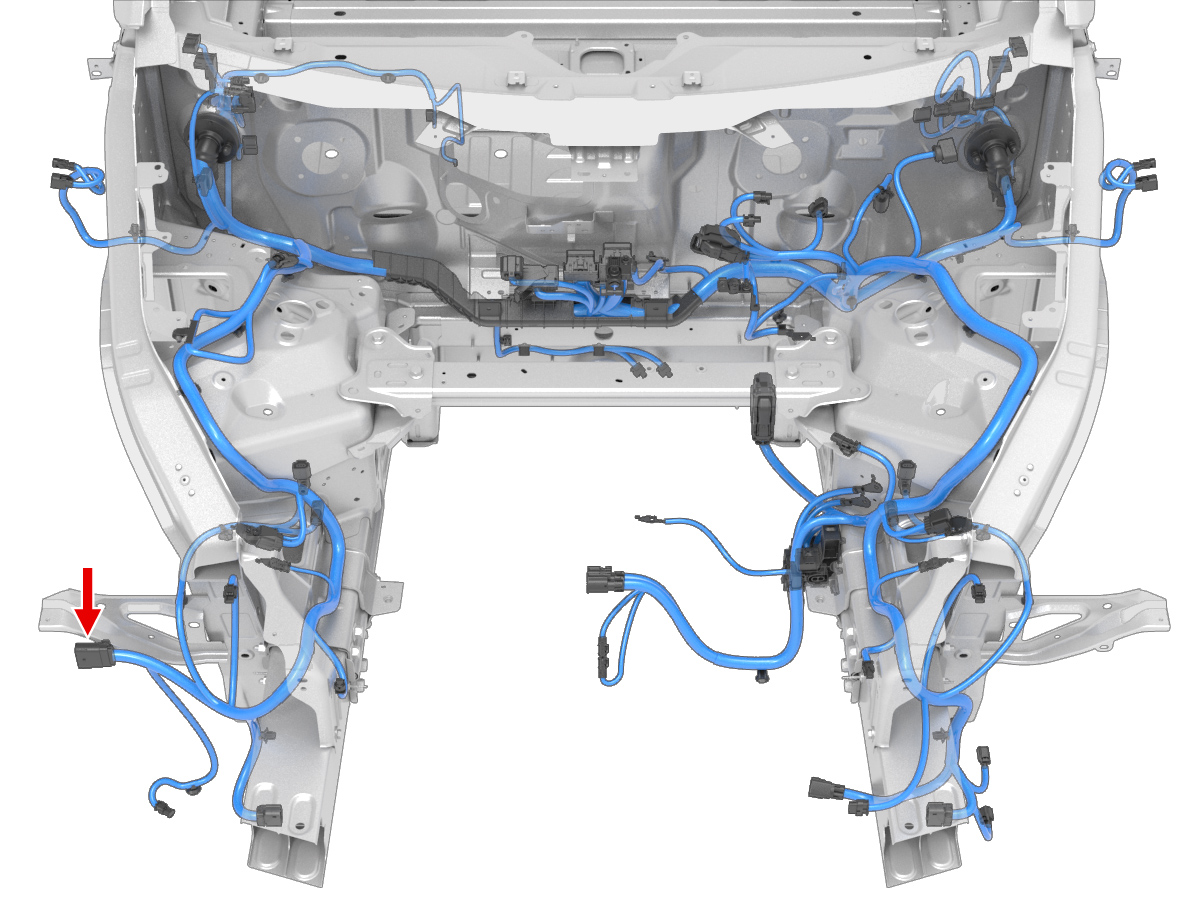

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0002	1.5x0.8M	RD	1.00	TESLA	MAT-120-240	X010	84
2	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X057	3
3	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X057	4
4	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X057	17
5	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X057	18
6	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X057	19
7	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X057	16
8	MOLEX	33000-0002	1.5x0.8M	WH	1.00	TESLA	MAT-120-240	X010	85
9	unused
10	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X057	26
11	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X010	8
12	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X010	5
13	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X010	23
14	MOLEX	33000-0004	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X010	9
15	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X057	6
16	MOLEX	33000-0002	1.5x0.8M	BK	1.00	TESLA	MAT-120-240	G012	9
17	unused
18	unused
19	unused
20	unused
