X905M

Tesla Part Number

1003238-00-B

Connector

MOLEX 33482-6201

Color

BK

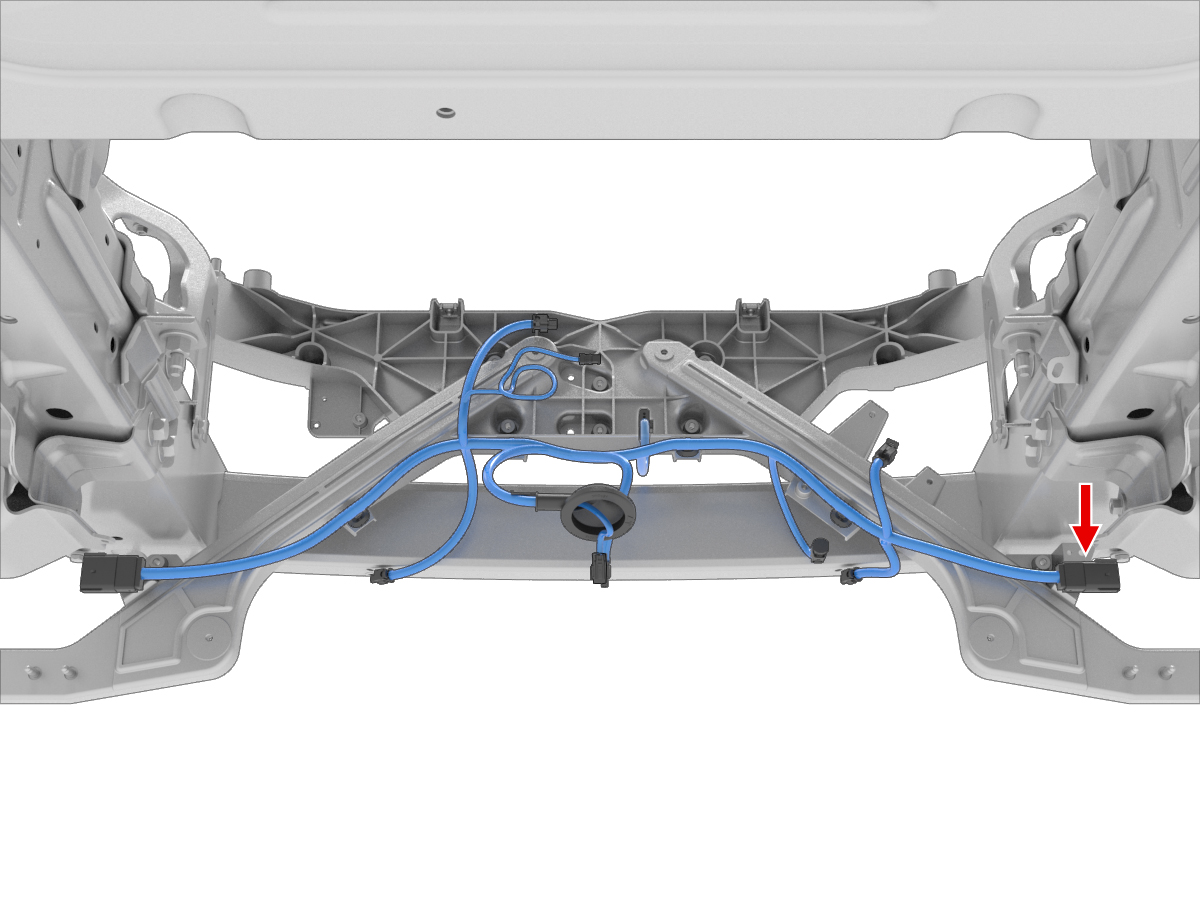

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	BK	0.50	TESLA	MAT-120-240
2	MOLEX	33000-0004	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X104	4
3	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X105	3
4	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X105	4
5	MOLEX	33000-0004	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X211	1
6	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X211	2
7	unused
8	unused
9	MOLEX	33000-0004	1.5x0.8M	RD	0.50	TESLA	MAT-120-240	X527	1
10	MOLEX	33000-0004	1.5x0.8M	BK	0.50	TESLA	MAT-120-240	X527	2
11	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X212	1
12	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X212	2
