X909M

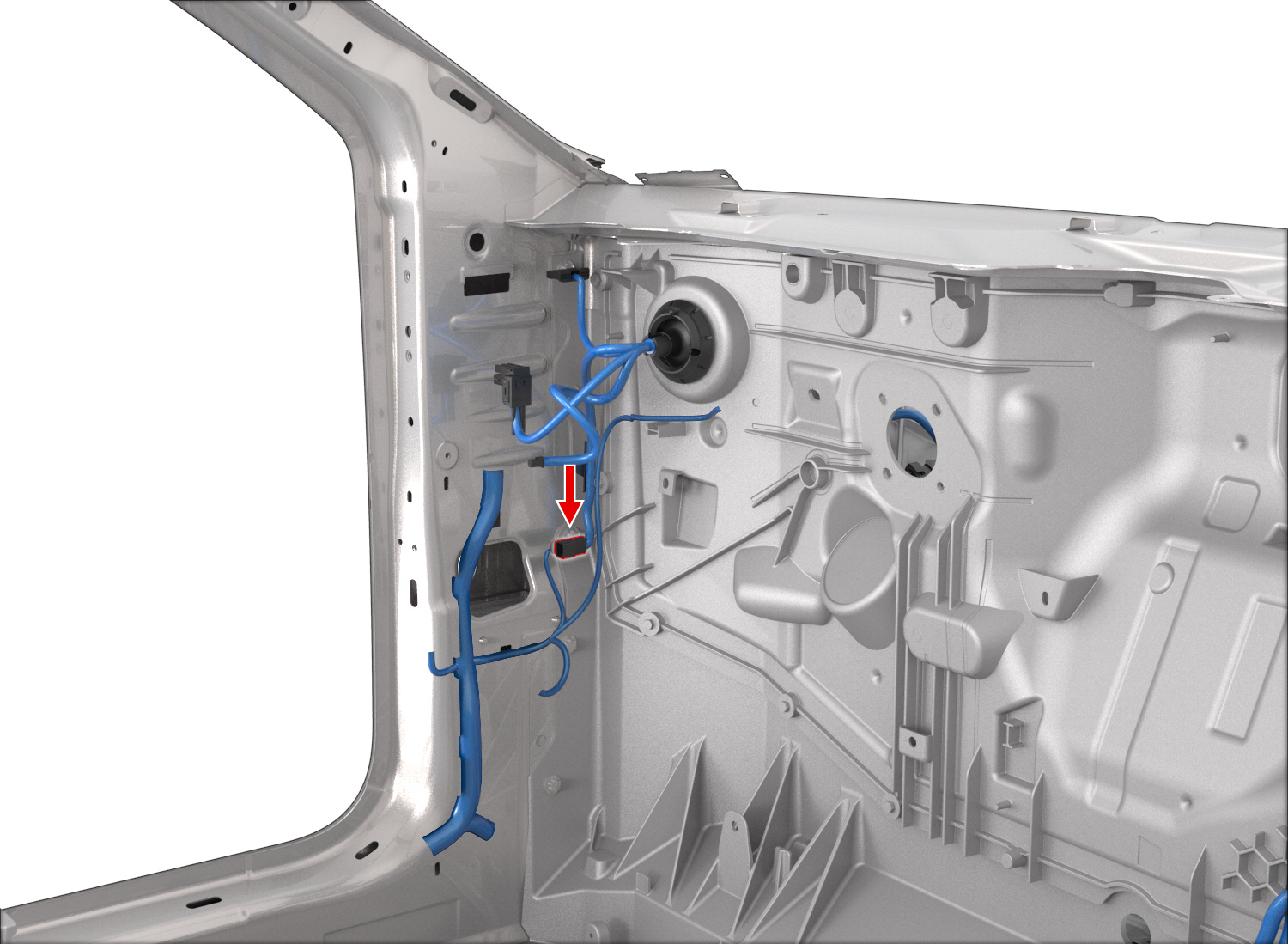

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN | 0.35 | X906F | 9 | ||
| 3 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE/LTBU | 0.35 | X010 | 15 | ||
| 4 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X010 | 30 | ||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | unused | ||||||||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
