X911M

Tesla Part Number

1003238-00-B

Connector

MOLEX 33482-6201

Color

BK

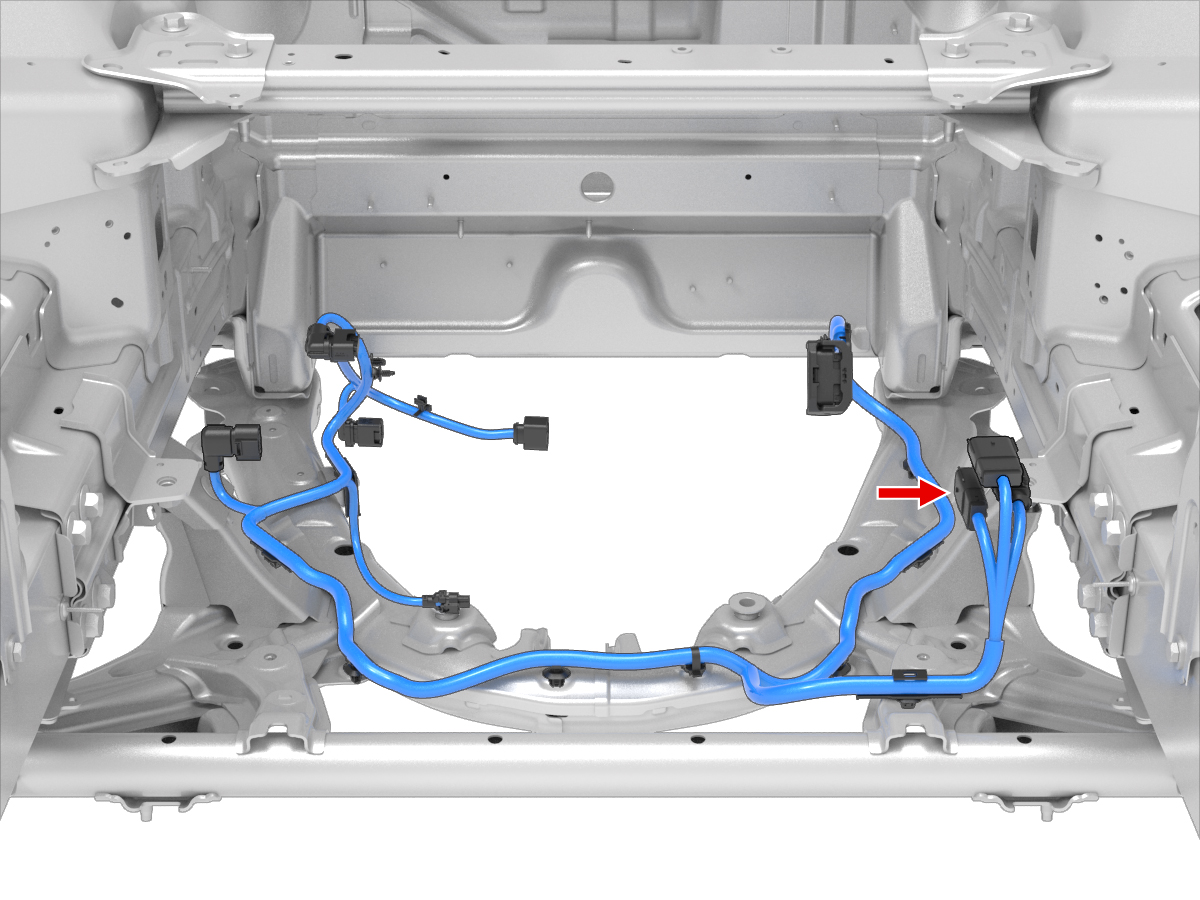

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0002	1.5x0.8M	VT	1.00	TESLA	MAT-120-240	X095	1
2	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X093	12
3	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X093	2
4	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X093	30
5	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X093	20
6	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X093	23
7	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X093	4
8	MOLEX	33000-0004	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	X093	13
9	MOLEX	33000-0002	1.5x0.8M	BK	1.00	TESLA	MAT-120-240	X095	3
10	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X093	3
11	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X093	22
12	unused
