X912M

Tesla Part Number

1516174-00-A

Connector

DELPHI 15521020

Color

BK

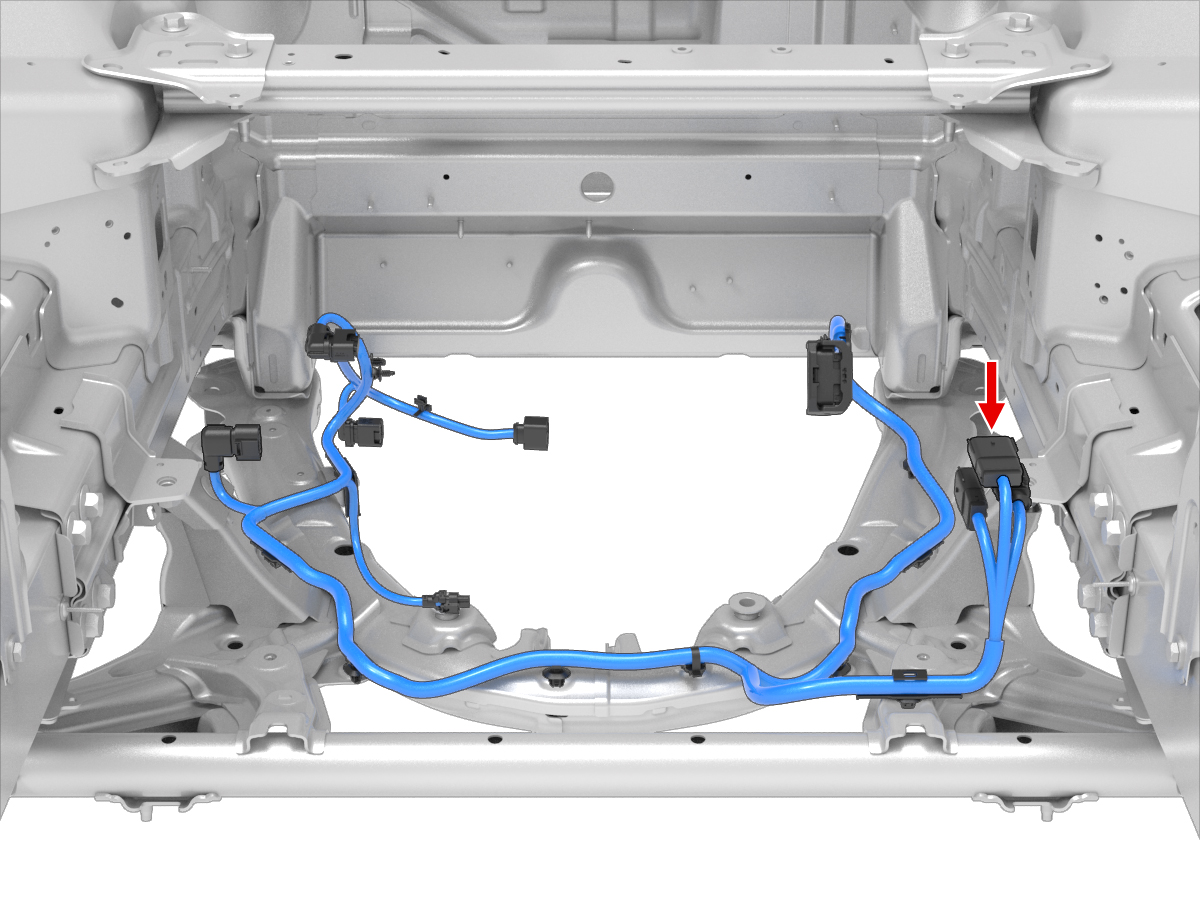

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13964789	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X082	1
2	DELPHI	13964789	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X082	2
3	DELPHI	13964789	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X082	3
4	DELPHI	13964789	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X080	2
5	DELPHI	13964789	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X080	1
6	DELPHI	13964789	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X080	4
7	DELPHI	13964789	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X080	3
8	DELPHI	13964789	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X080	8
9	DELPHI	13964789	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X080	6
10	DELPHI	13964789	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X080	5
11	DELPHI	13964789	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X080	10
12	DELPHI	13964789	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X080	9
13	DELPHI	13964789	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X080	7
14	unused
15	unused
16	unused
