X926M

Tesla Part Number

1502146-00-A

Connector

YAZAKI 7286-1919

Color

NA

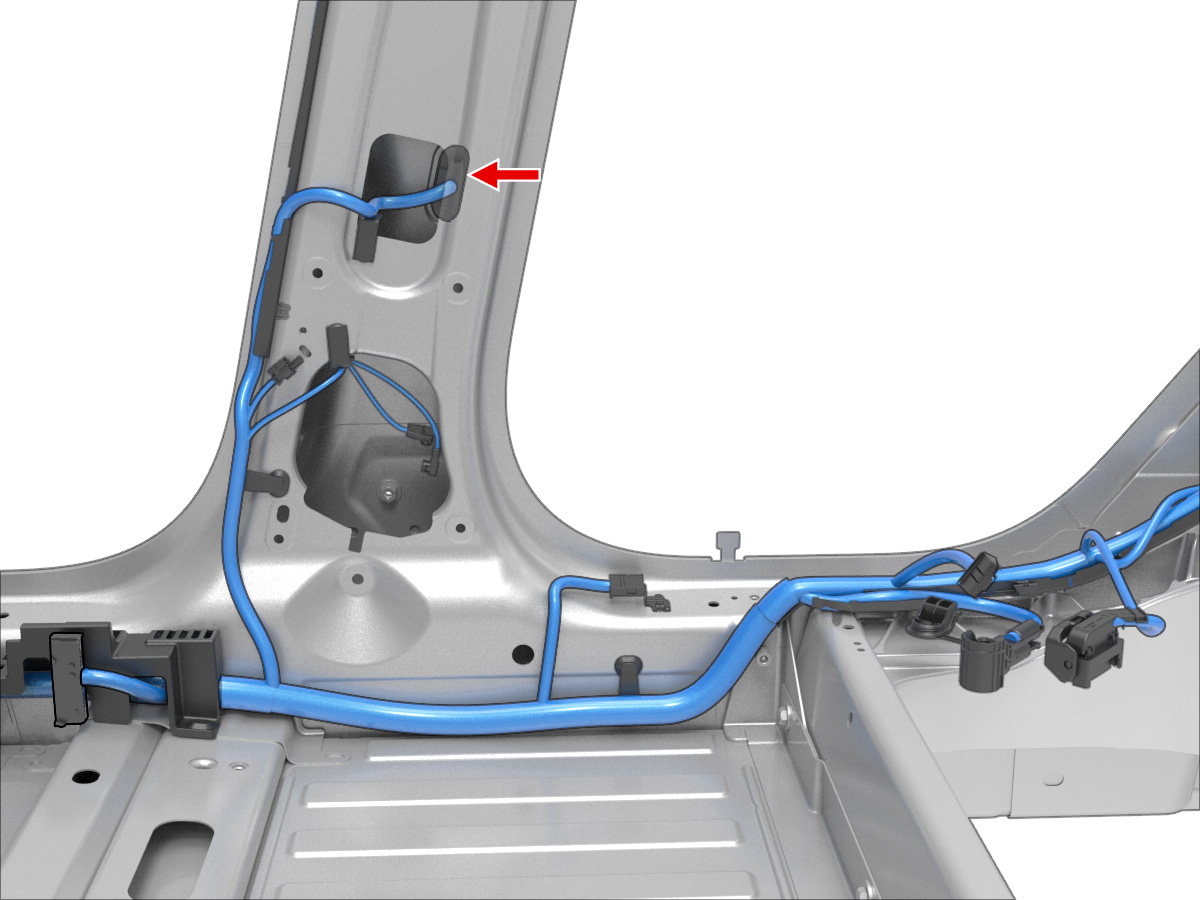

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	WH	1.50			X051	2
2	SUMITOMO	8230-4923	1.5x0.6M	VT	1.50			X051	1
3	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X051	6
4	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X051	22
5	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X050A	18
6	unused
7	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X051	25
8	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X050A	20
9	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X050B	5
10	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X050B	1
11	SUMITOMO	8230-4925	1.5x0.6M	BN	0.35			X050A	6
12	unused
13	SUMITOMO	8230-4925	1.5x0.6M	RD	0.35			X050A	21
14	SUMITOMO	8230-4925	1.5x0.6M	BN	0.35			X051	21
15	SUMITOMO	8230-4925	1.5x0.6M	TN	0.35			X051	27
16	unused
17	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X051	11
18	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	42
19	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X201	41
20	SUMITOMO	8100-3623	0.64x0.64M	BK	0.50			X050A	26
21	unused
22	unused
23	unused
24	SUMITOMO	8230-4925	1.5x0.6M	BU	0.50			X171	7
25	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X171	8
