X929M

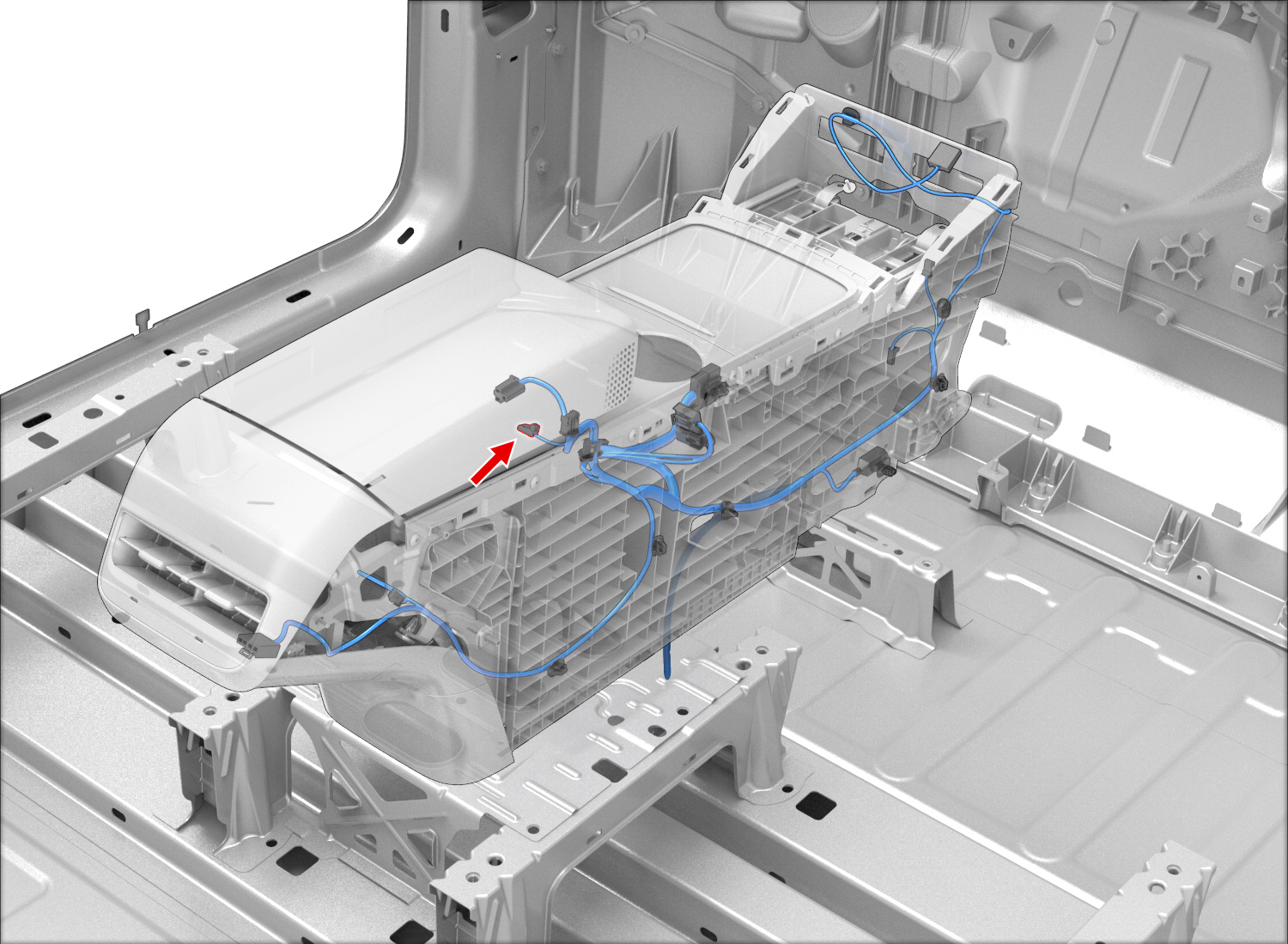

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4923 | 1.5x0.6M | YE | 2.00 | X930M | 15 | ||
| 2 | SUMITOMO | 8230-4925 | 1.5x0.6M | WH | 0.35 | X930M | 25 | ||
| 3 | unused | ||||||||
| 4 | SUMITOMO | 8230-4923 | 1.5x0.6M | BK | 2.00 | X930M | 14 | ||
| 5 | SUMITOMO | 8230-4923 | 1.5x0.6M | BU | 2.00 | X196B | D | ||
| 6 | SUMITOMO | 8230-4925 | 1.5x0.6M | BK | 0.35 | ||||
| 7 | SUMITOMO | 8230-4925 | 1.5x0.6M | VT | 0.35 | X694 | B | ||
| 8 | SUMITOMO | 8230-4923 | 1.5x0.6M | GY | 2.00 | X196B | A | ||
