X935M

Tesla Part Number

1517047-00-A

Connector

YAZAKI 7288-4103-40

Color

GY

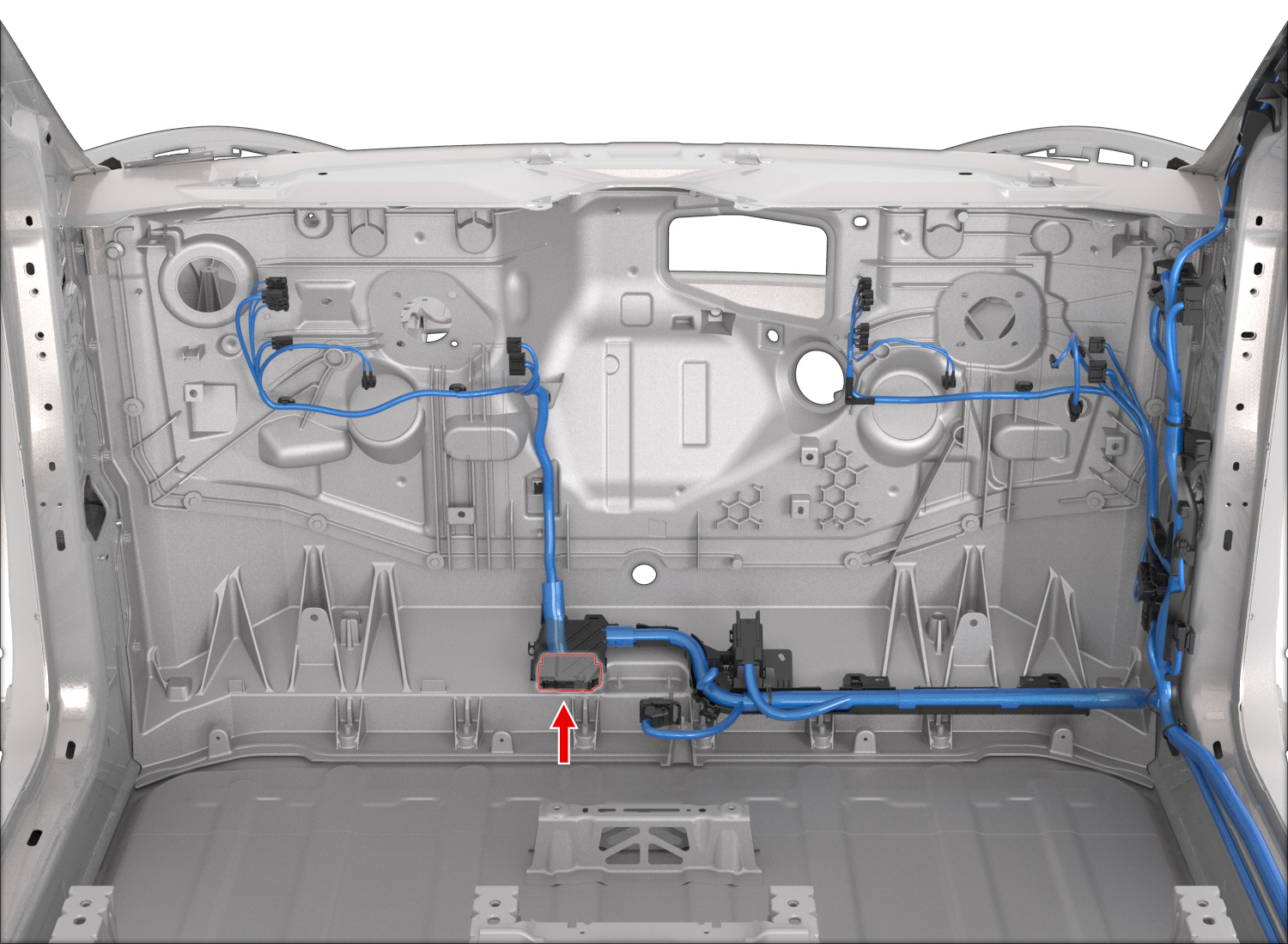

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	WH	2.00			X561	8
2	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X561	7
3	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X171	3
4	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X171	4
5	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X175	7
6	SUMITOMO	8230-4925	1.5x0.6M	GY	0.50			X175	8
7	unused
8	SUMITOMO	8230-4925	1.5x0.6M	WH	0.50			X171	7
9	SUMITOMO	8230-4925	1.5x0.6M	BN	0.50			X171	8
10	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X560	2
11	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X560	1
12	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X942F	17
13	SUMITOMO	8230-4925	1.5x0.6M	BU	0.35			X942F	2
14	SUMITOMO	8230-4925	1.5x0.6M	GN	0.35			X201	17
15	SUMITOMO	8230-4925	1.5x0.6M	VT	0.35			X201	18
16	unused
17	unused
18	SUMITOMO	8230-4925	1.5x0.6M	GN	0.35			X201	22
19	SUMITOMO	8230-4925	1.5x0.6M	BU	0.35			X201	21
20	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X201	43
21	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X201	44
22	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X201	12
23	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X201	11
24	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X165A	3
25	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X942F	13
26	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X201	39
27	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X201	40
28	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X098	6
29	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X098	7
30	SUMITOMO	8100-3623	0.64x0.64M	YE/LTBU	0.35			X051	14
31	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X051	30
32	unused
33	SUMITOMO	8100-3623	0.64x0.64M	YE/DKBU	0.35			X201	72
34	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	71
35	unused
36	unused
37	SUMITOMO	8100-3623	0.64x0.64M	GN/WH	0.35			X201	54
38	SUMITOMO	8100-3623	0.64x0.64M	DKGN	0.35			X201	53
39	SUMITOMO	8230-4925	1.5x0.6M	GN	0.35			X167A	2
40	SUMITOMO	8230-4925	1.5x0.6M	VT	0.35			X167A	3
41	unused
42	unused
43	unused
44	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X494	4
45	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X494	3
46	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X167A	6
47	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X167A	5
48	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X167A	4
49	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X167A	1
50	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X563	7
51	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X563	8
52	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X098	11
53	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X098	10
54	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X168A	2
55	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X201	4
56	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X201	3
57	unused
58	unused
59	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X175	16
60	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X175	15
61	unused
62	SUMITOMO	8230-4923	1.5x0.6M	RD	2.00			X165A	4
63	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X165A	1
