X940M

Tesla Part Number
1042588-00-A
Connector
SUMITOMO 6098-5668
Color
WH

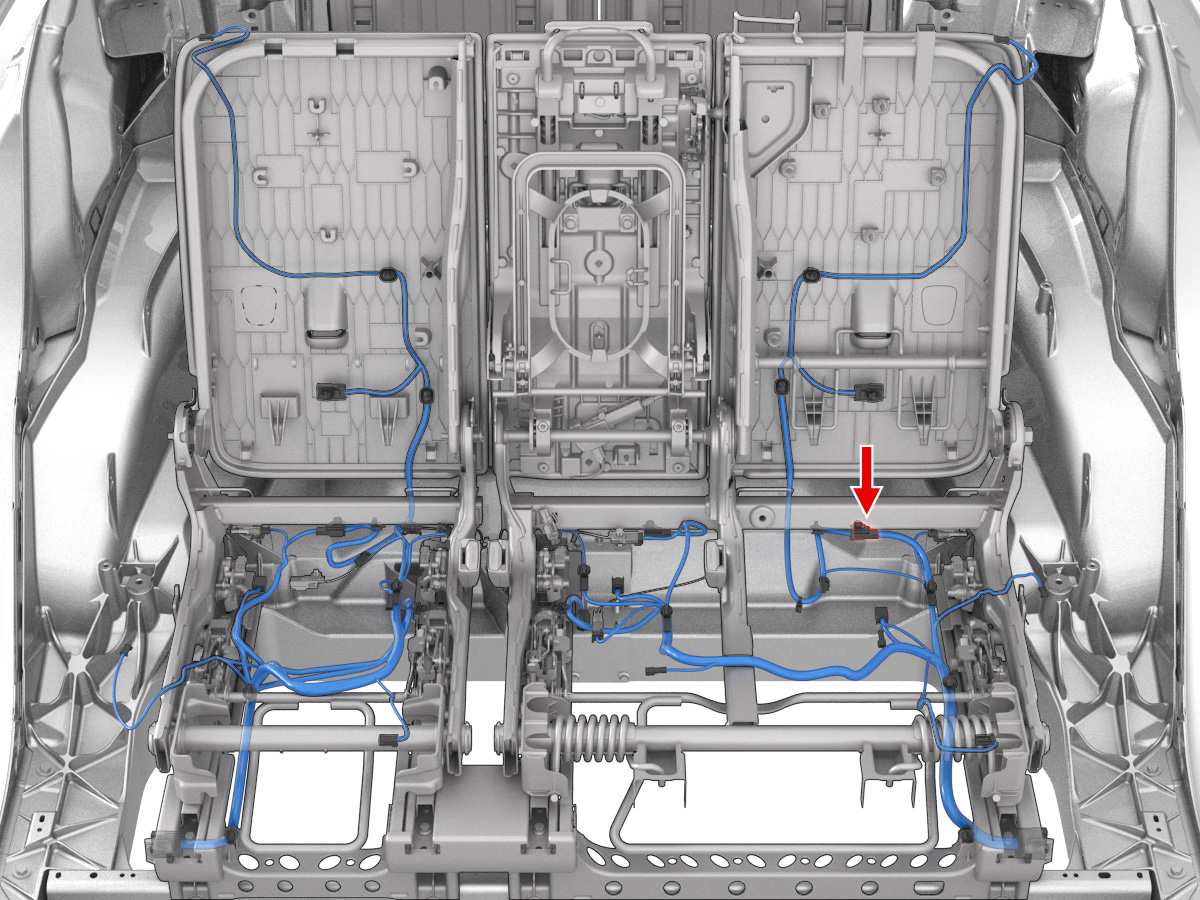

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8230-49251.5x0.6MVT0.35X943M24
2SUMITOMO8230-49251.5x0.6MGY0.35
3SUMITOMO8230-49251.5x0.6MRD0.50X943M1
4SUMITOMO8230-49251.5x0.6MBK0.50
