X947F

Tesla Part Number

1042578-00-A

Connector

SUMITOMO 6098-3909

Color

WH

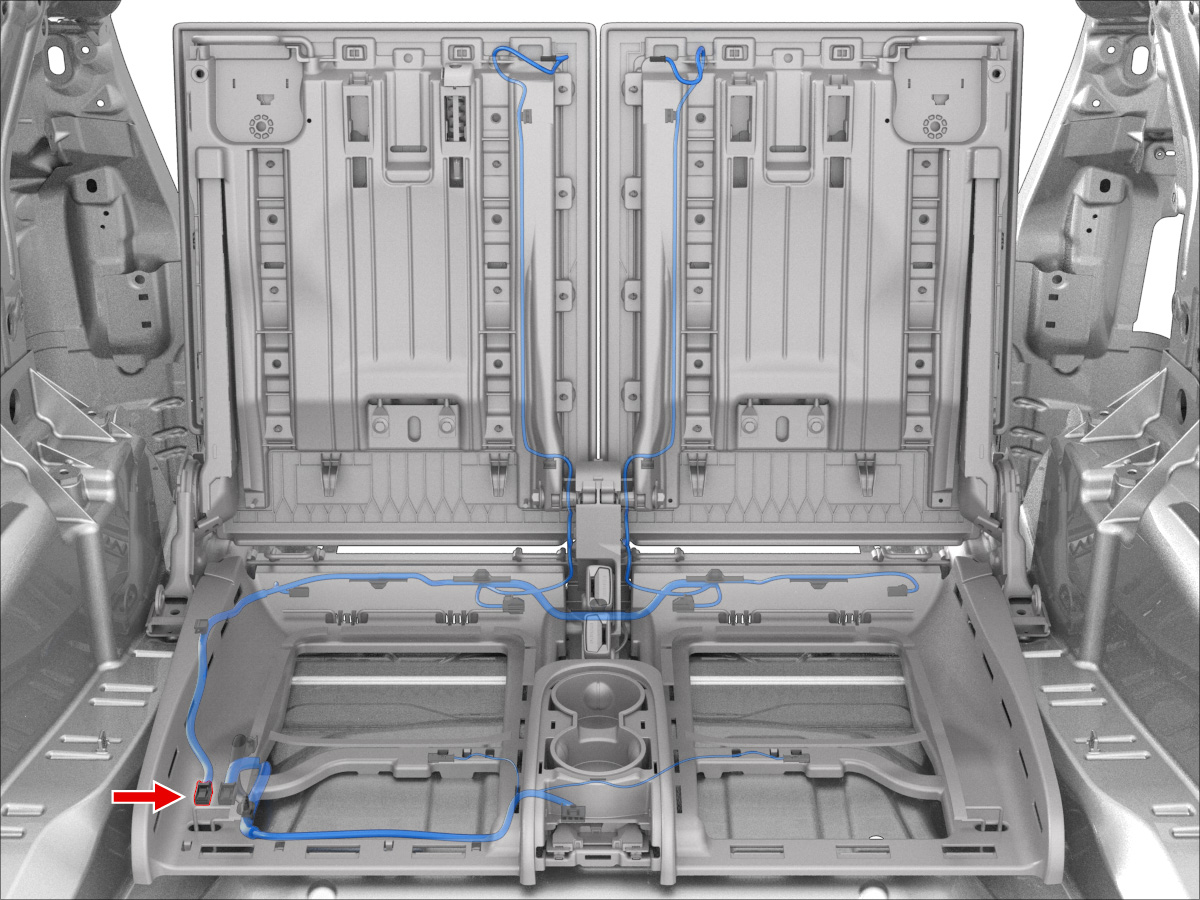

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X679	2
2	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X679	1
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X678	2
4	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X678	1
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X683	1
6	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X656	1
9	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X657	1
10	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X682	1
