X949F

Tesla Part Number

1555679-00-A

Connector

MOLEX 33472-4806

Color

BK

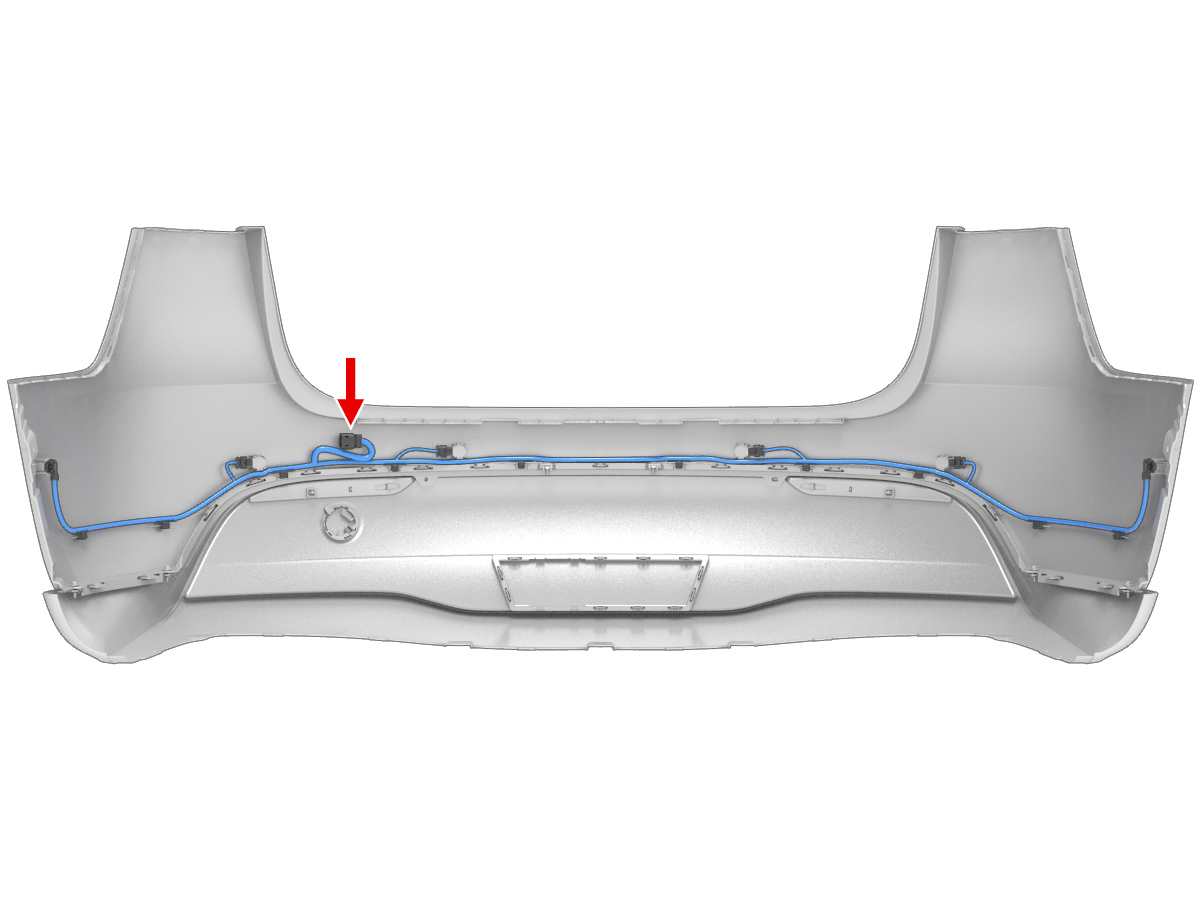

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240
2	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X142	2
3	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X145	2
4	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X143	2
5	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X140	2
6	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X144	2
7	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X141	2
8	MOLEX	33012-3004	1.5x0.8F	BK	0.35	TESLA	MAT-120-240
