X949M

Tesla Part Number

1516302-00-A

Connector

MOLEX 33482-4801

Color

BK

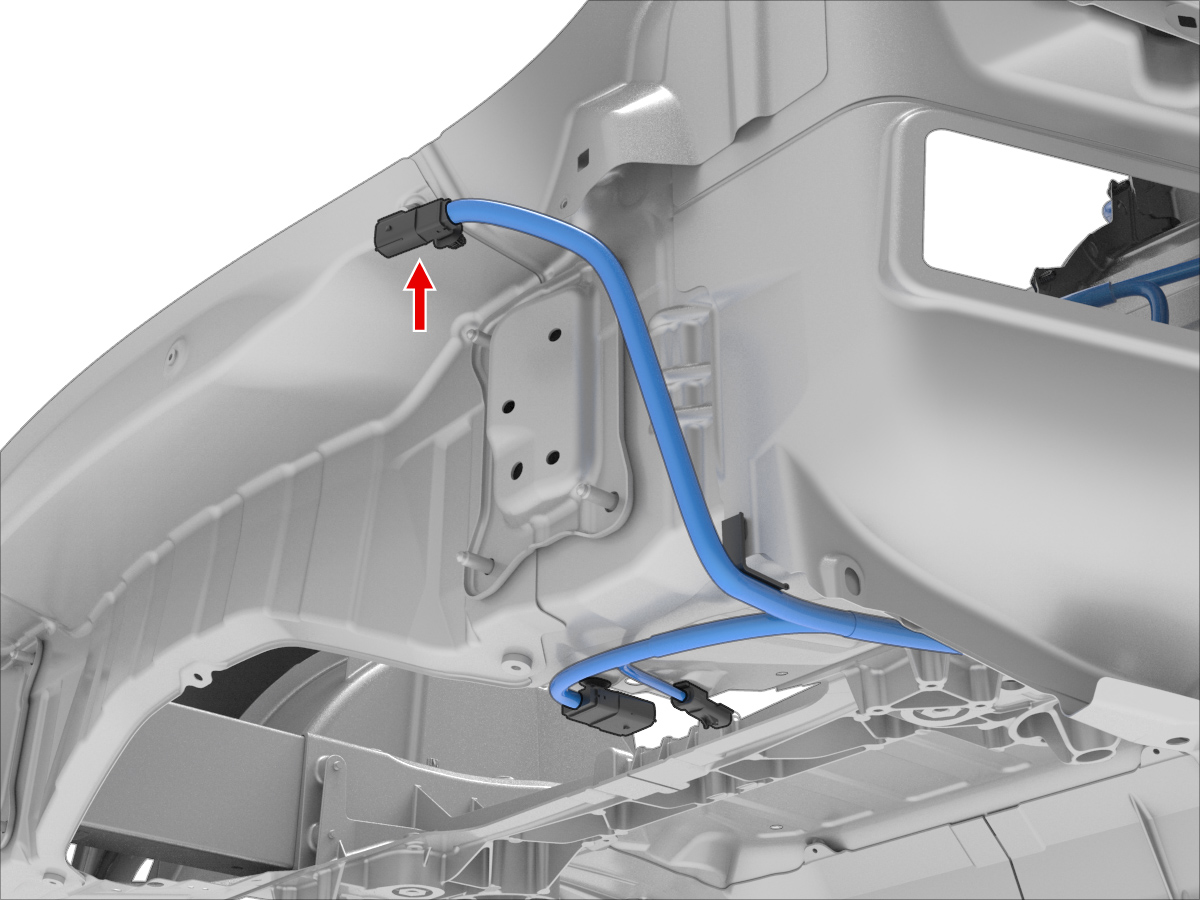

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X051	45
2	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X050A	5
3	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X050A	17
4	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X050A	3
5	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X050A	16
6	MOLEX	33000-0004	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X050A	15
7	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X050A	4
8	MOLEX	33000-0004	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	X051	44
