X952M

Tesla Part Number

1754744-00-A

Connector

MOLEX 33482-7014

Color

BK

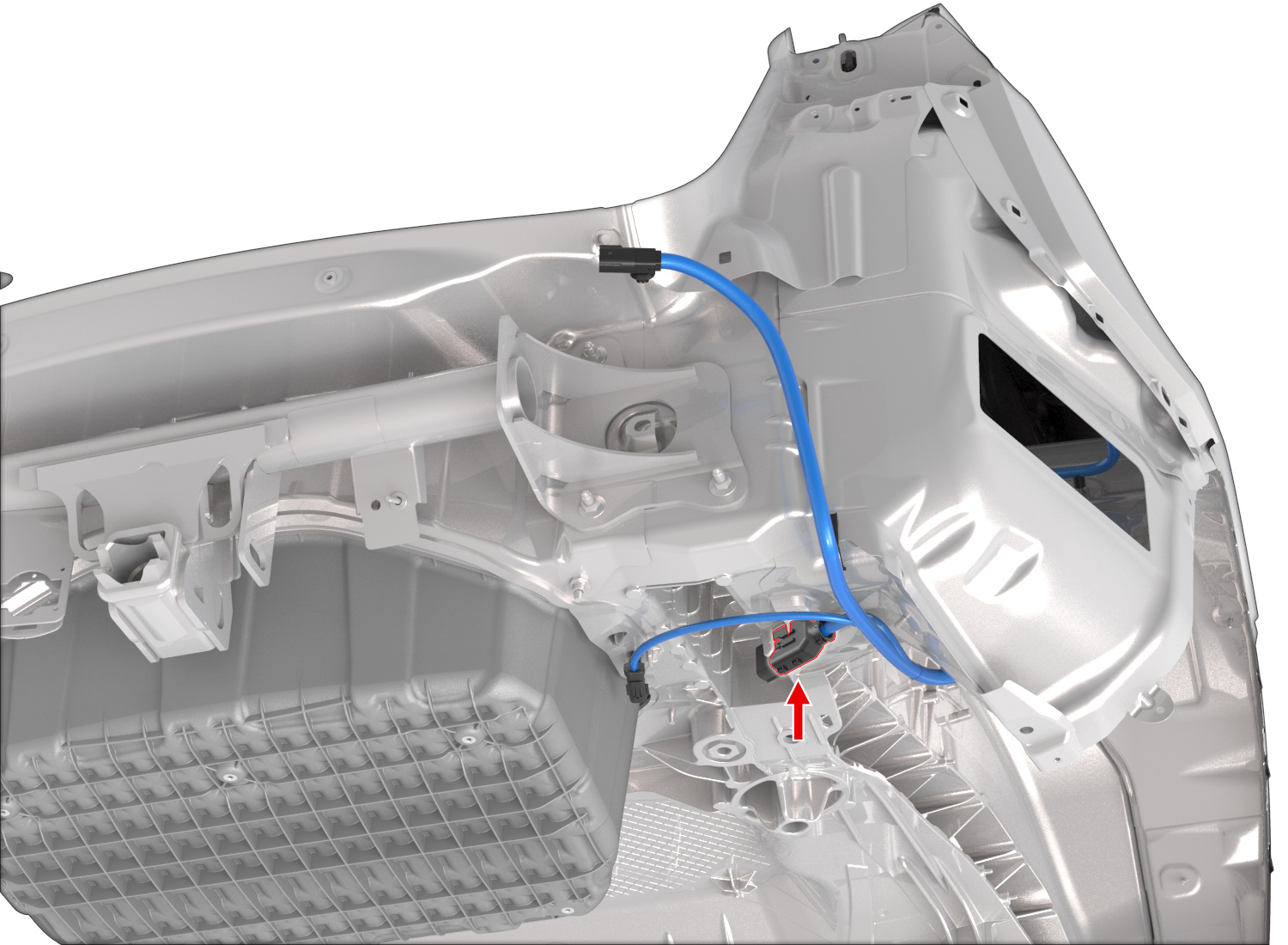

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	MOLEX	33000-0004	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X908M	20
3	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X908M	21
4	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X908M	4
5	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X908M	5
6	MOLEX	33000-0004	1.5x0.8M	BN/WH	0.35	TESLA	MAT-120-240	X050A	22
7	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X050A	23
8	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X098	1
9	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X908M	17
10	MOLEX	33000-0001	1.5x0.8M	RD	1.50	TESLA	MAT-120-240	X051	3
11	unused
12	unused
13	unused
14	MOLEX	33000-0004	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	G042	8
15	unused
16	unused
