X954M

Tesla Part Number

1042582-01-A

Connector

SUMITOMO 6098-3886

Color

BK

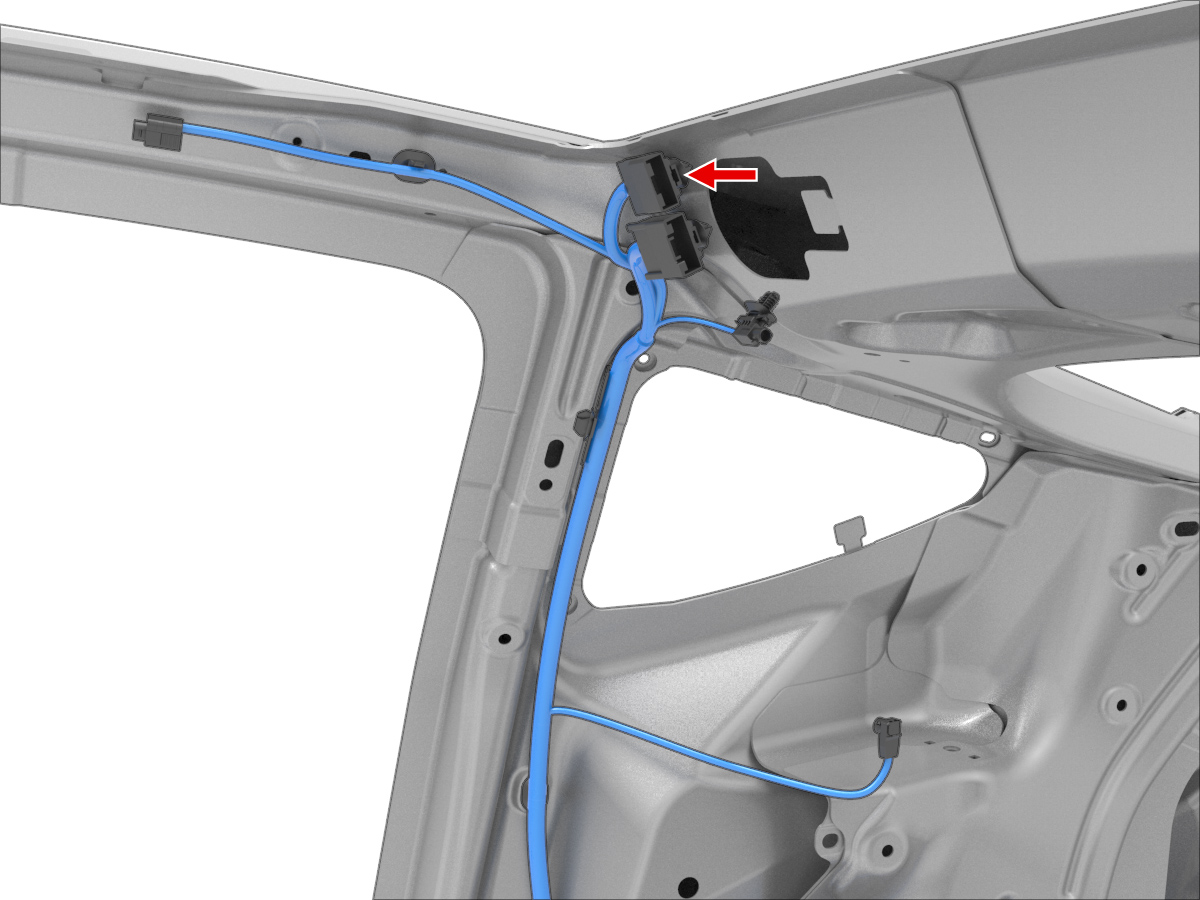

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X051	24
2	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X051	9
3	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X050A	25
4	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X050A	19
5	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X059	20
6	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X059	21
7	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X059	18
8	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X050A	8
9	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X059	23
10	unused
11	unused
12	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X051	38
13	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X059	22
14	unused
15	unused
16	unused
17	unused
18	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X051	41
19	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X050A	24
20	unused
21	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X051	23
22	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X051	8
