G031

Tesla Part Number

1660490-00-C

Connector

KSE K30M00121

Color

BK

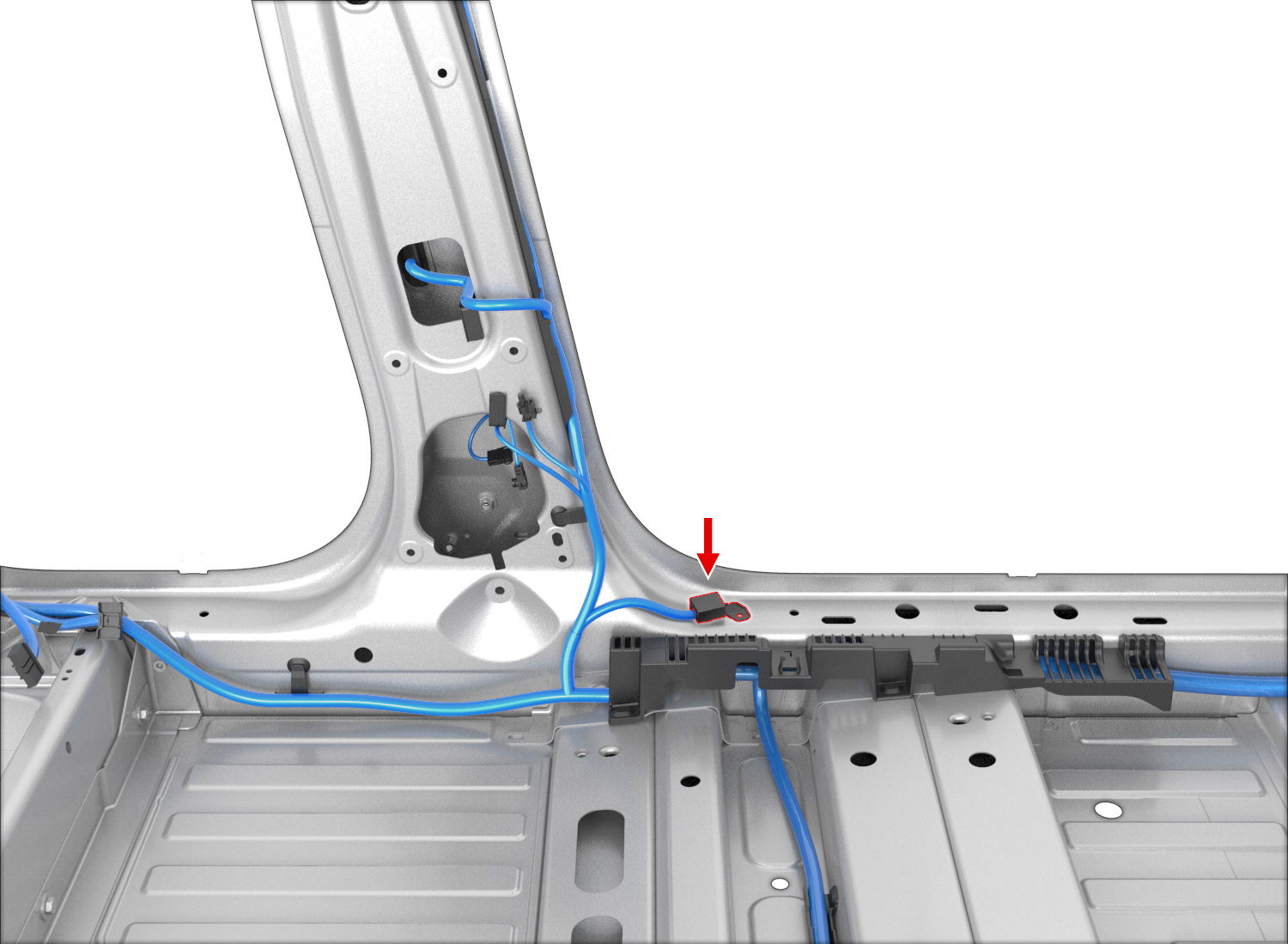

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-0782	4.8x0.8F	BK	4.00			G041	1
2	unused
3	SUMITOMO	8100-0782	4.8x0.8F	BK	2.00			X165	2
4	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X930F	7
5	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X201	62
6	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X493	5
7	unused
8	unused
9	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			X943F	26
10	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X168	1
11	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			X930F	14
12	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X201	55
13	unused
14	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X981M	20
15	unused
