X057

Tesla Part Number

1849226-02-B

Connector

KSE K20F01213

Color

GY

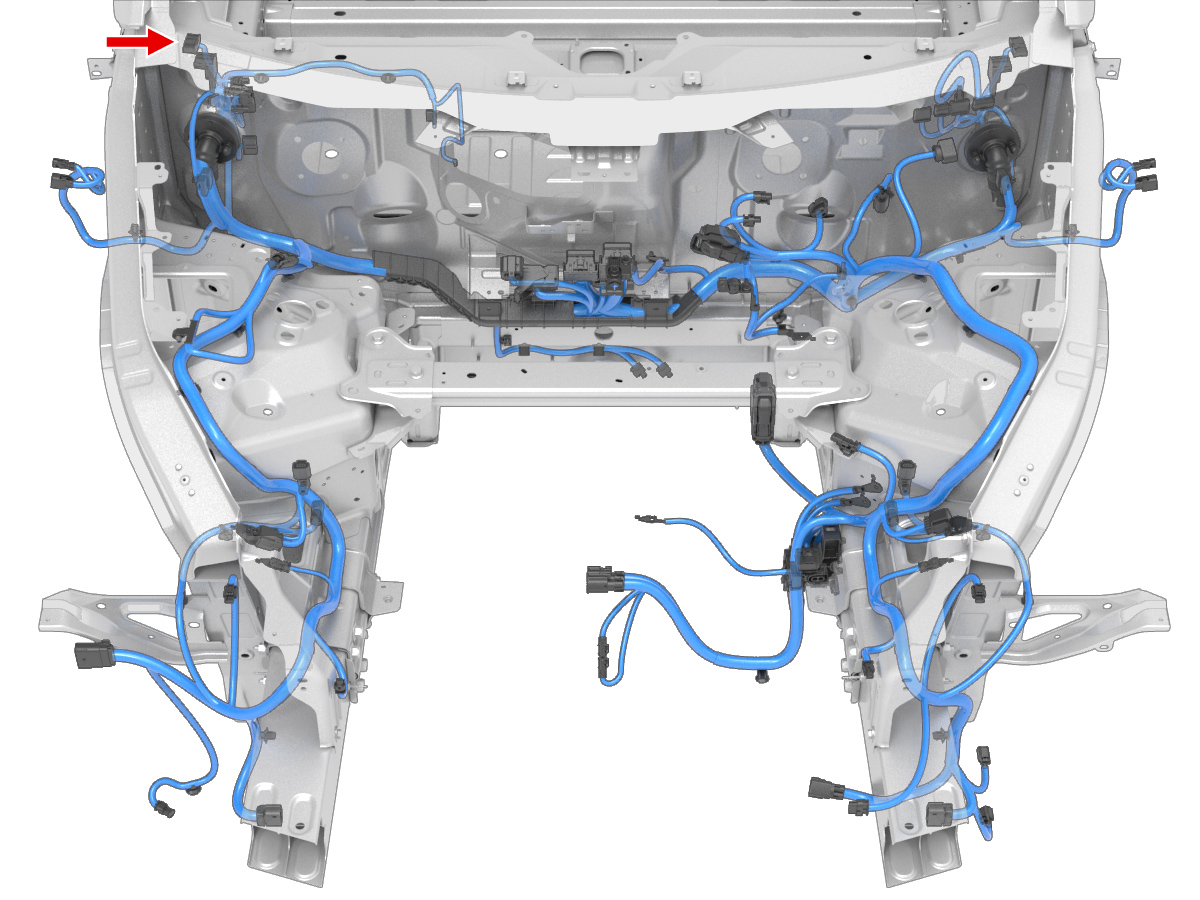

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X908M	9
2	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X010	21
3	unused
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X010	68
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X010	65
8	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X037	17
9	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X037	16
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X170A	2
11	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X170A	1
12	unused
13	unused
14	SUMITOMO	8240-0213	1.5x0.64F	TN	1.00			X918F	1
15	unused
16	unused
17	unused
18	unused
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			X905F	10
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X905F	9
22	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X120A	13
23	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X120	12
24	unused
25	unused
26	unused
