X120

Tesla Part Number

1815599-01-A

Connector

SUMITOMO 6099-0401

Color

GY

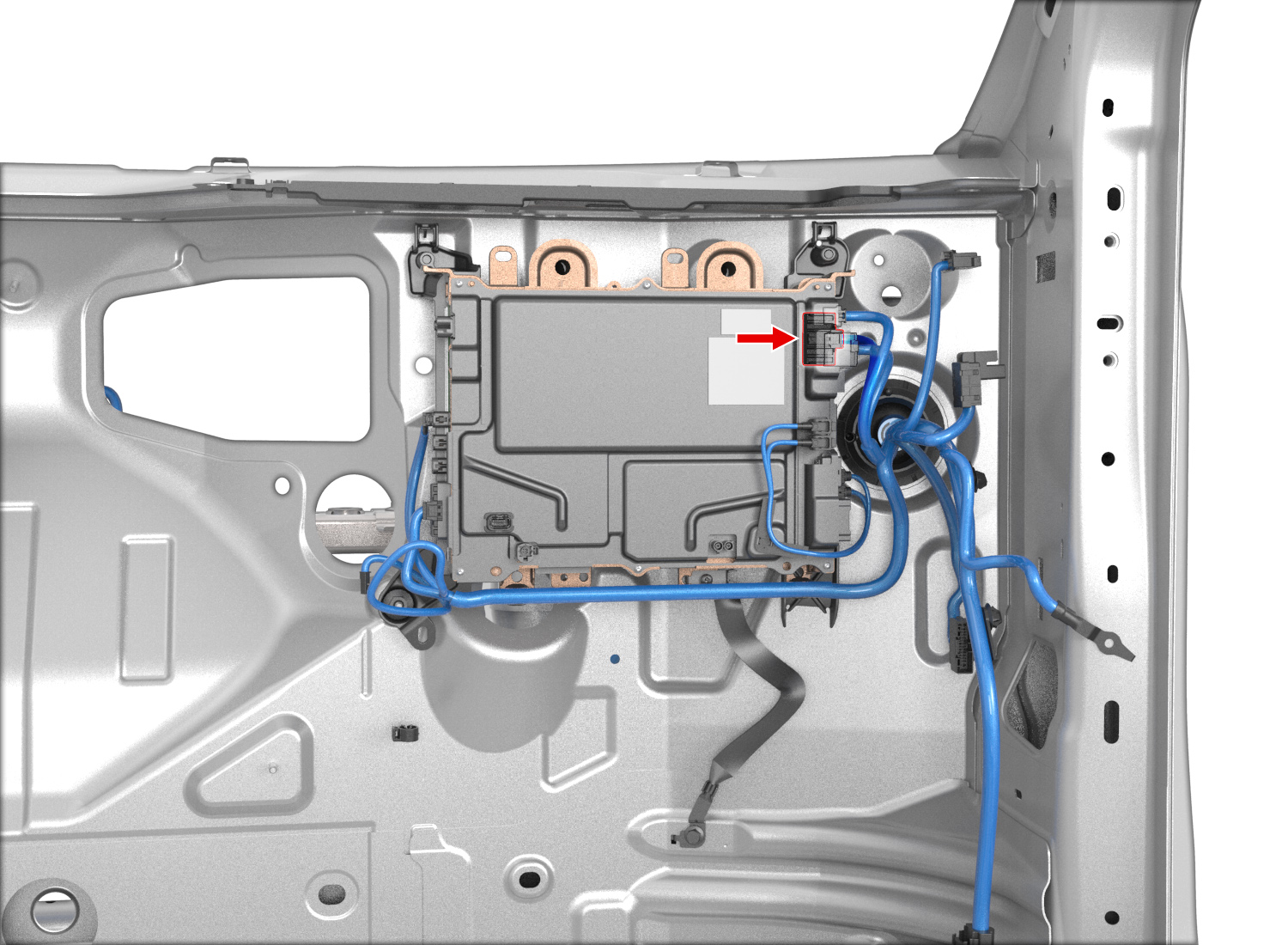

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-4932	4.8x0.8F	WH	4.00			X011	6
2	unused
3	SUMITOMO	8100-2730	1.0x0.64F	DKGN/WH	0.35			X037	14
4	SUMITOMO	8100-2730	1.0x0.64F	GN	0.35			X037	15
5	SUMITOMO	8100-2730	1.0x0.64F	VT	0.35			X905F	3
6	SUMITOMO	8100-2730	1.0x0.64F	GY	0.35			X905F	4
7	unused
8	unused
9	unused
10	unused
11	SUMITOMO	8100-2730	1.0x0.64F	GY	0.35			X603	2
12	SUMITOMO	8100-2730	1.0x0.64F	BN/WH	0.35			X057	23
13	SUMITOMO	8100-2730	1.0x0.64F	BN	0.35			X057	22
14	unused
15	unused
16	unused
17	unused
18	unused
19	unused
20	SUMITOMO	8100-2730	1.0x0.64F	RD	0.35			X603	1
