X168A

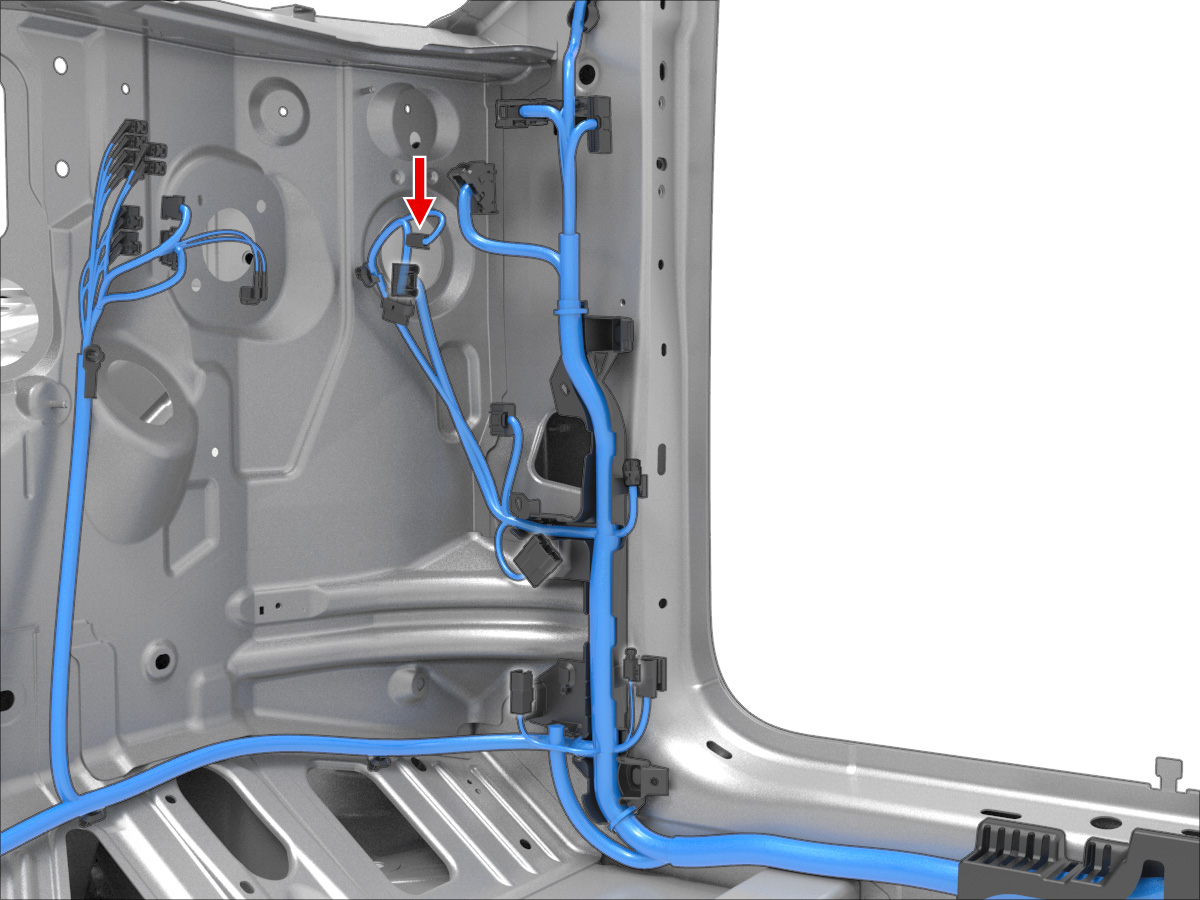

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | G032 | 6 | |||||
| 2 | RD | 0.35 | X935F | 54 | |||||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
