X170A

Tesla Part Number
1645962-00-B
Connector
KSE K20F00711
Color
BK

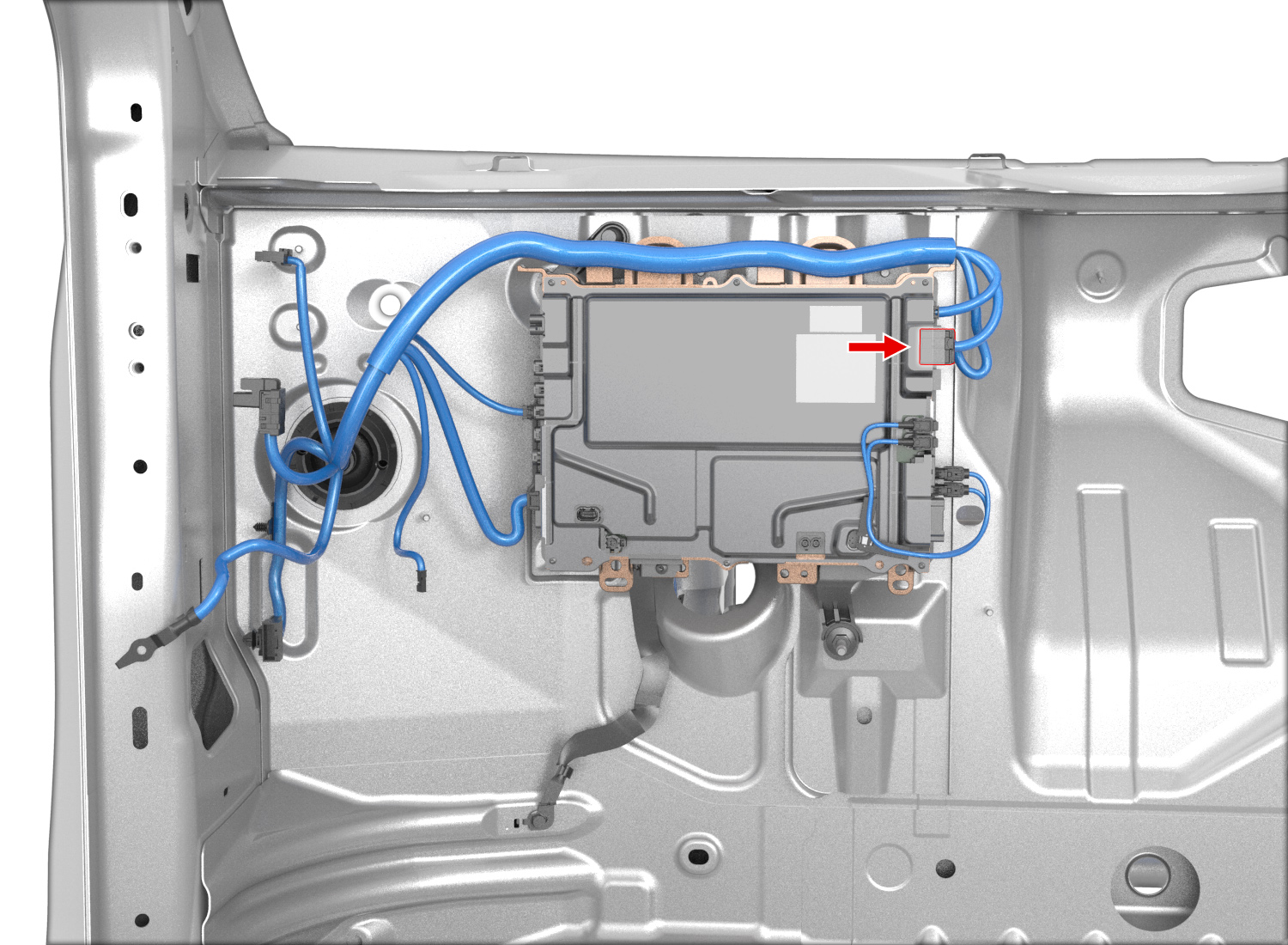

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI355781910.64x0.64FBN/WH0.35X05711
2DELPHI355781910.64x0.64FBN0.35X05710
3DELPHI355781910.64x0.64FDKGN/WH0.35X03713
4DELPHI355781910.64x0.64FGN0.35X03712
5unused
6unused
7unused
8unused
9YAZAKI7116-4272-022.8x0.8FWH2.00X01093
10YAZAKI7116-4272-022.8x0.8FRD2.00X01092
