X180_1

Tesla Part Number

1459574-00-A

Connector

KOSTAL 22400736187

Color

YL

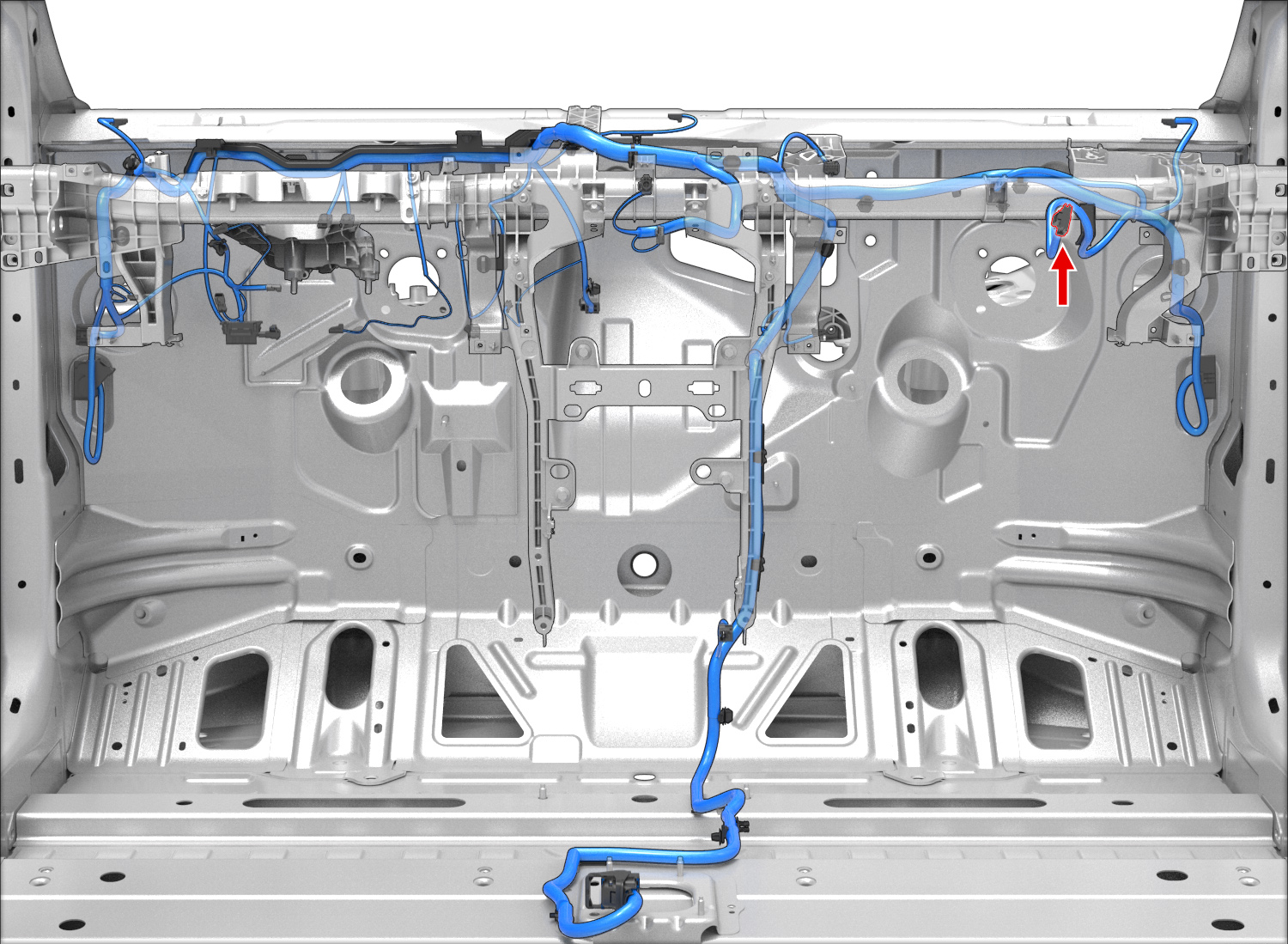

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	KOSTAL	32124734013	1.2x0.6F	GY	0.35			X035_1	44
2	KOSTAL	32124734013	1.2x0.6F	BN/WH	0.35			X035_1	13
3	KOSTAL	32124734013	1.2x0.6F	BN	0.35			X035_1	12
4	KOSTAL	32124734033	1.2x0.6F	BK	0.75
5	unused
6	KOSTAL	32124734033	1.2x0.6F	BK	0.75
7	KOSTAL	32124734033	1.2x0.6F	VT	0.75			X035_1	5
8	KOSTAL	32124734013	1.2x0.6F	TN	0.35			X200_1	17
9	KOSTAL	32124734013	1.2x0.6F	BN	0.35			X200_1	16
10	KOSTAL	32124734013	1.2x0.6F	RD	0.35			X200_1	21
11	KOSTAL	32124734013	1.2x0.6F	GN	0.35			X200_1	20
12	KOSTAL	32124734013	1.2x0.6F	YE	0.35			X200_1	9
13	KOSTAL	32124734013	1.2x0.6F	BU	0.35			X200_1	10
14	KOSTAL	32124734013	1.2x0.6F	GN	0.35			X035_1	41
