X185

Tesla Part Number
1582608-00-A
Connector
AMPHENOL 10142348-004LF
Color
BK

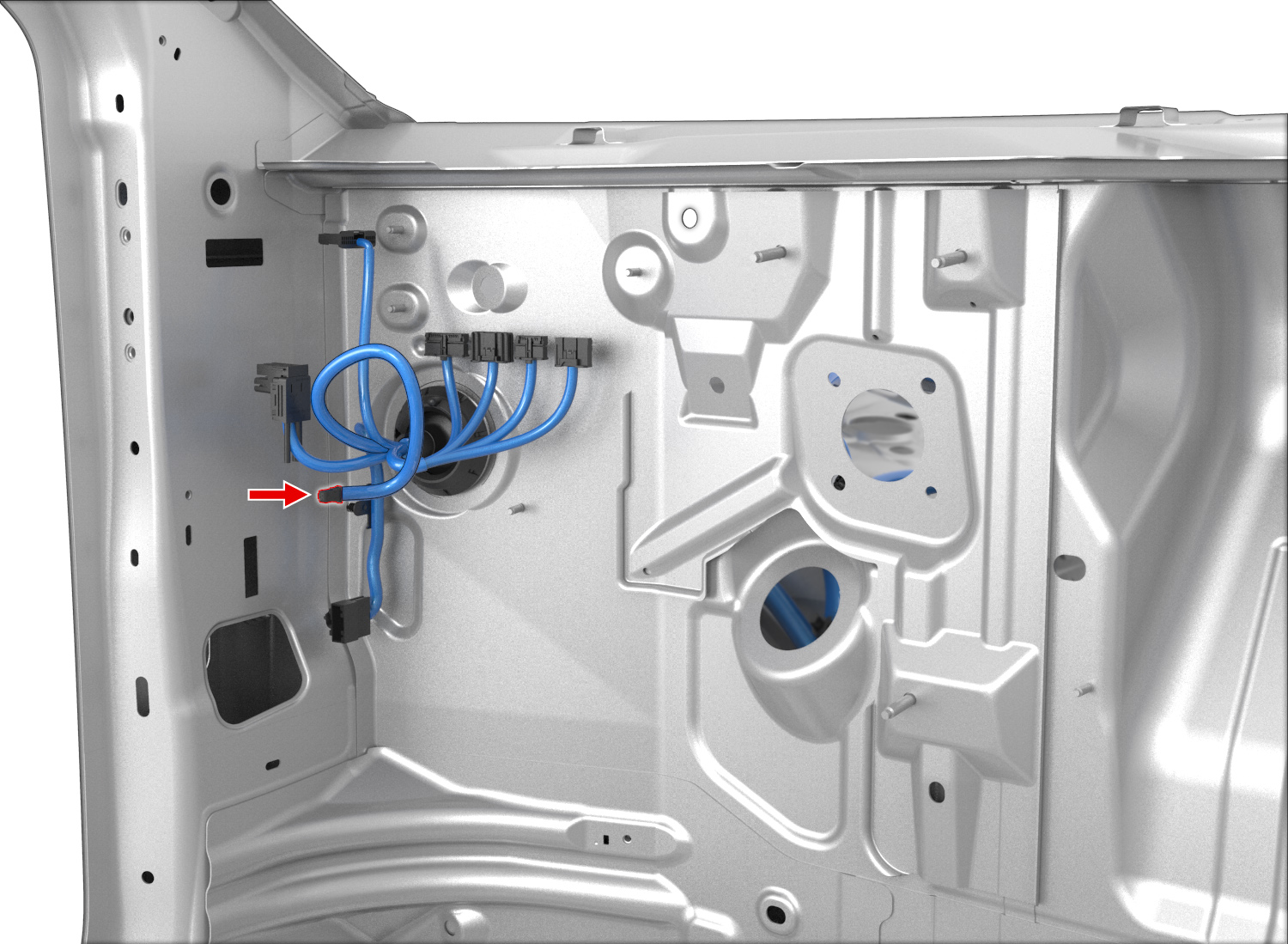

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMPHENOL10141272-111 LF0.50FYE0.35X1732
2AMPHENOL10141272-111 LF0.50FVT0.35X1731
3AMPHENOL10141272-111 LF0.50FBU0.35X1736
4AMPHENOL10141272-111 LF0.50FWH0.35X1735
