X201

Tesla Part Number

1475379-00-A

Connector

BOSCH 1928406051

Color

BK

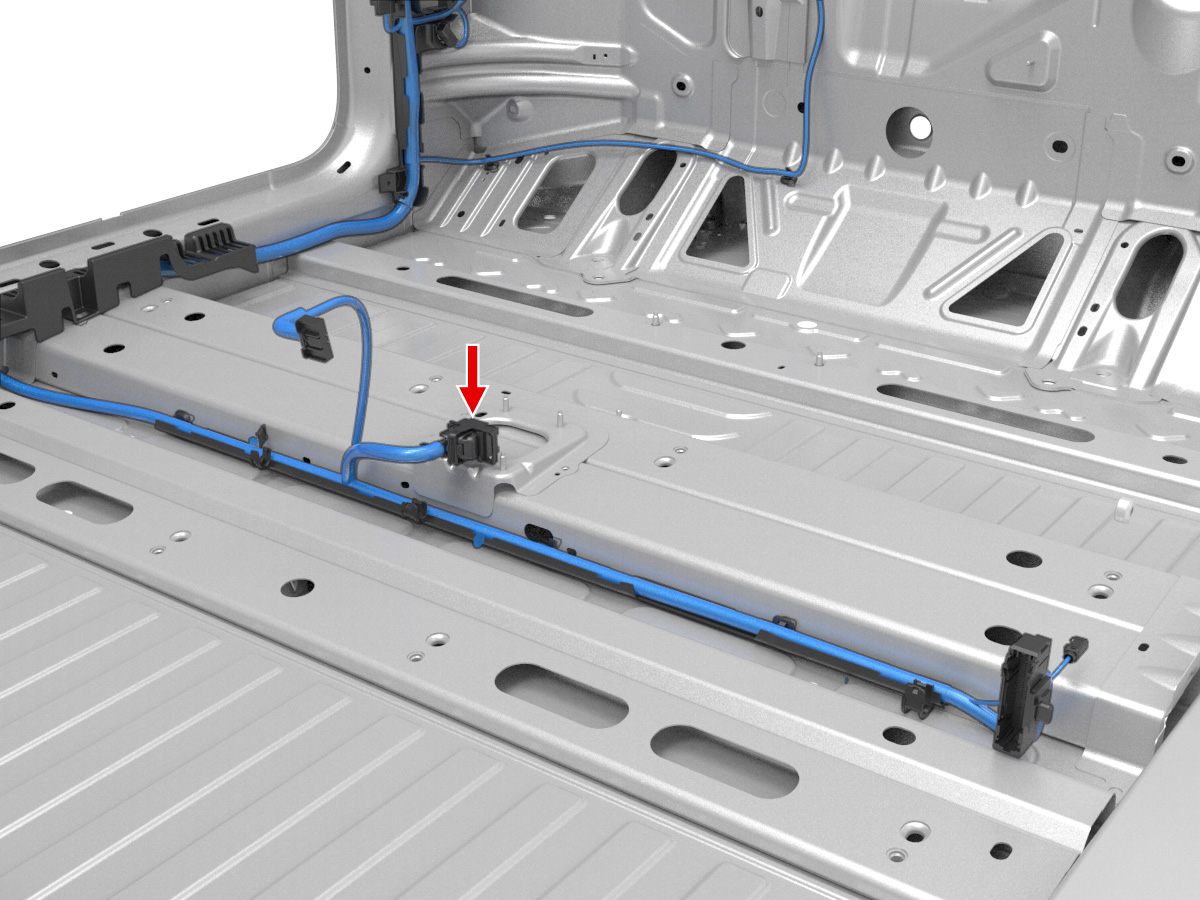

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X935M	14
2	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935M	15
3	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X217	2
4	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X217	1
5	unused
6	unused
7	unused
8	unused
9	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935M	23
10	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X935M	22
11	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X225	2
12	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X225	1
13	unused
14	unused
15	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X935M	56
16	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X935M	55
17	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X221	1
18	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X221	2
19	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X935M	18
20	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935M	19
21	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X219	2
22	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X219	1
23	unused
24	unused
25	unused
26	unused
27	unused
28	unused
29	unused
30	unused
31	unused
32	unused
33	unused
34	unused
35	unused
36	unused
37	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X935M	27
38	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X935M	26
39	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X206	1
40	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X206	2
41	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935M	21
42	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X935M	20
43	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X924M	18
44	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X924M	19
45	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X909F	8
46	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X909F	7
47	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X909F	12
48	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X909F	13
49	unused
50	unused
51	unused
52	unused
53	BOSCH	1928499468	0.50x0.40F	DKGN	0.35	TESLA	MAT-110-130	X030A	3
54	BOSCH	1928499468	0.50x0.40F	DKGN/WH	0.35	TESLA	MAT-110-130	X030A	4
55	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G031	12
56	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935M	32
57	unused
58	unused
59	unused
60	unused
61	unused
62	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G031	5
63	unused
64	unused
65	unused
66	unused
67	unused
68	unused
69	unused
70	unused
71	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X031	45
72	BOSCH	1928499468	0.50x0.40F	YE/DKBU	0.35	TESLA	MAT-110-130	X031	44
