X374

Tesla Part Number
1042476-00-A
Connector
SUMITOMO 6098-3802
Color
WH

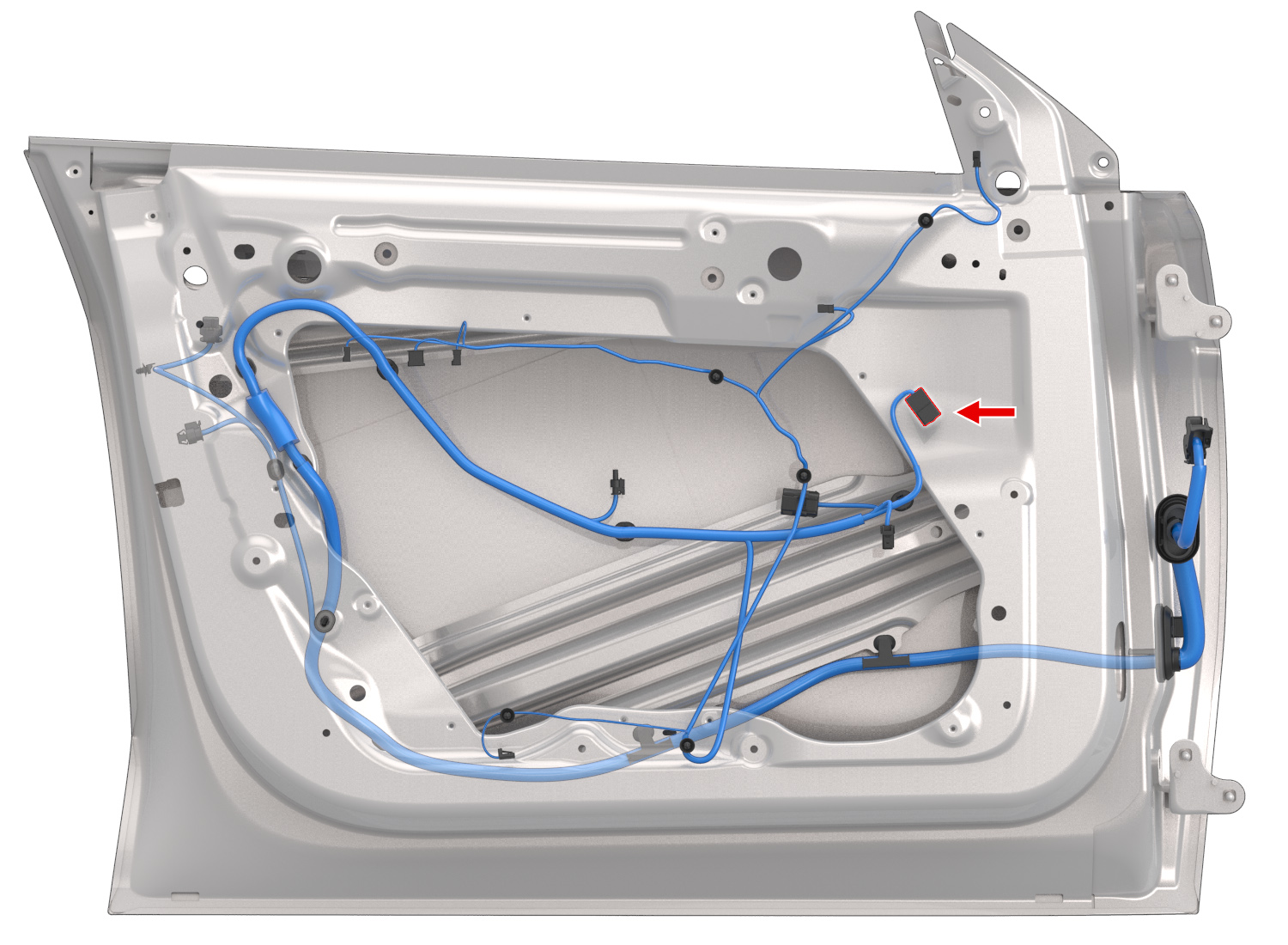

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8100-36230.64x0.64MVT0.35X033A8
2unused
3SUMITOMO8100-36230.64x0.64MWH0.35X033A7
4unused
5SUMITOMO8100-36230.64x0.64MYE0.35X033A9
