X472

Tesla Part Number
1122869-00-C
Connector
ROSENBERGER 1122869-00-C
Color
NA

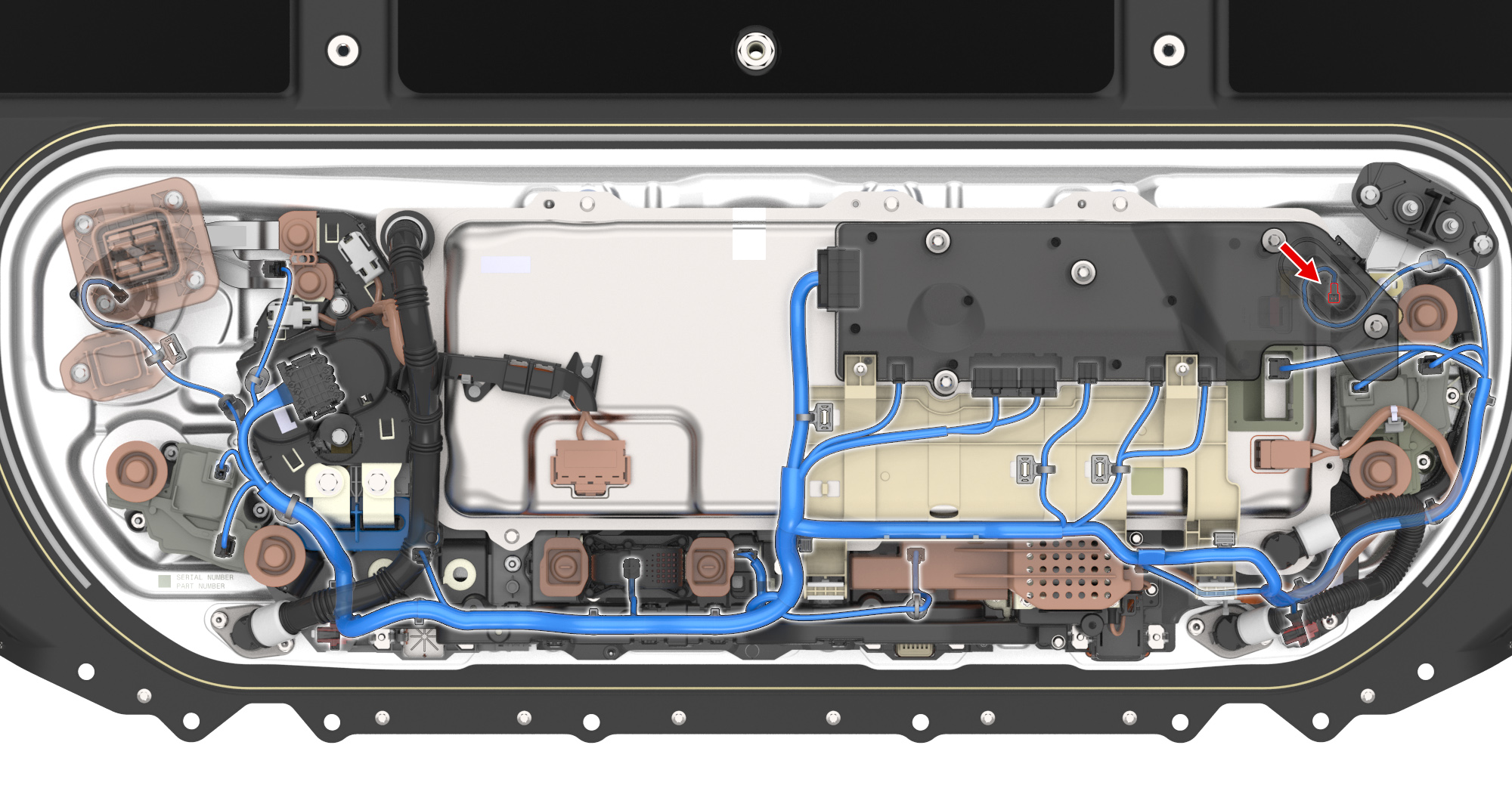

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-AU-26PIAGN0.13X4831
2GENPIA-AU-26PIAWH0.13X4832
