X479

Tesla Part Number

1080448-00-A

Connector

JST RADPB-44-1AK

Color

BK

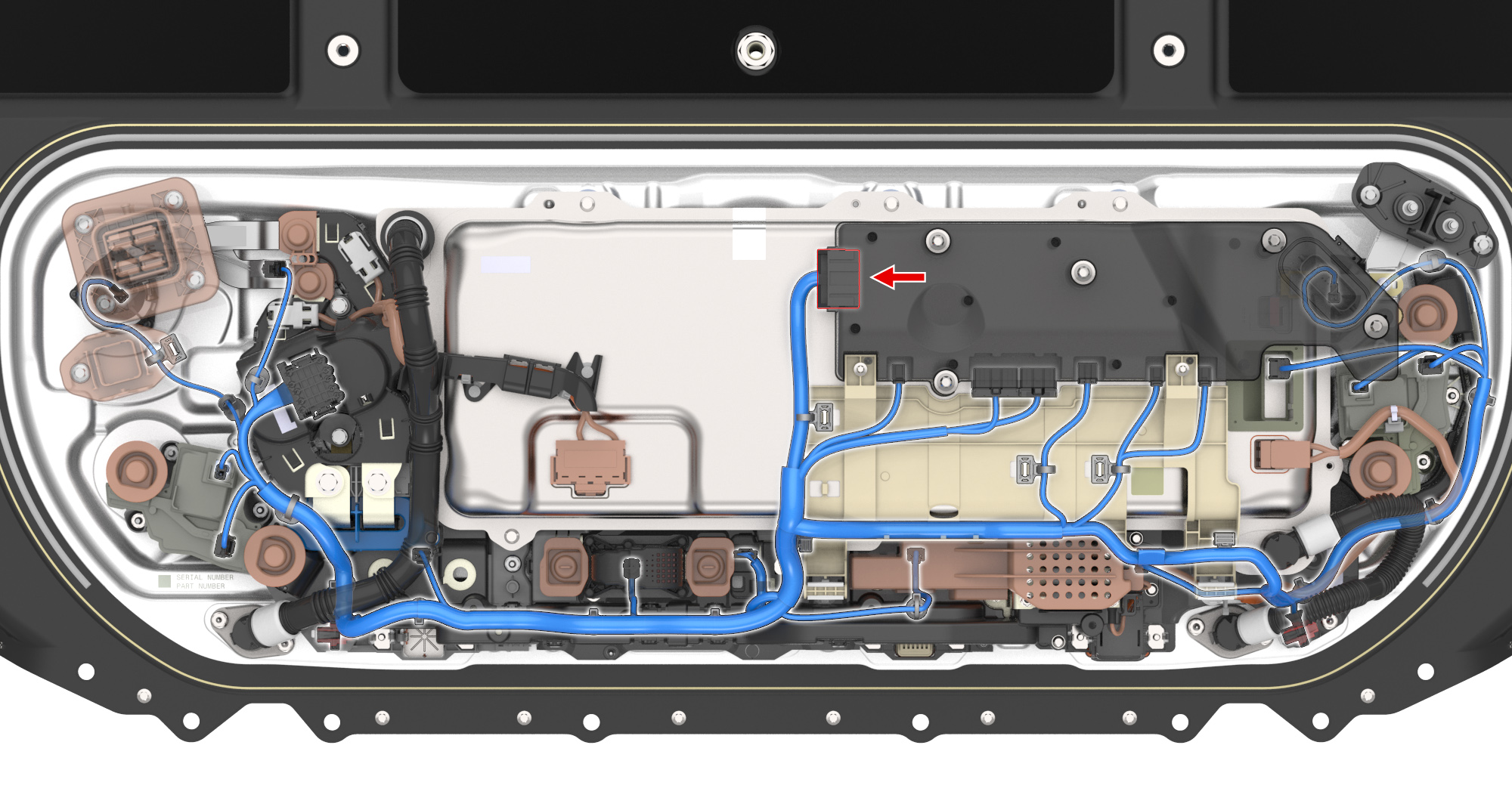

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35			X420	4
2	JST	SAIT-A03T-M064	0.64x0.64F	RD	0.35			X420	6
3	JST	SAIT-A03T-M064	0.64x0.64F	YE	0.35			X477	9
4	JST	SAIT-A03T-M064	0.64x0.64F	BN	0.35			X477	5
5	JST	SAIT-A03T-M064	0.64x0.64F	YE	0.35			X420	3
6	JST	SAIT-A03T-M064	0.64x0.64F	RD	0.35			X420	2
7	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35			X421	3
8	unused
9	unused
10	JST	SAIT-A03T-M064	0.64x0.64F	RD	0.35			X424	2
11	unused
12	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35			X420	11
13	unused
14	unused
15	JST	SAIT-A03T-M064	0.64x0.64F	YE	0.35			X420	5
16	JST	SAIT-A03T-M064	0.64x0.64F	BN	0.35			X424	3
17	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35			X477	6
18	JST	SAIT-A03T-M064	0.64x0.64F	RD	0.35			X477	2
19	unused
20	unused
21	unused
22	unused
23	unused
24	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35			X422	2
25	unused
26	JST	SAIT-A03T-M064	0.64x0.64F	YE	0.35			X420	10
27	unused
28	unused
29	DELPHI	12191811		WH	0.35			X420	1
30	DELPHI	12191811		BN	0.35			X420	12
31	unused
32	unused
33	DELPHI	12191812		WH	0.75			X474	1
34	DELPHI	12191812		YE	0.75			X476	1
35	DELPHI	12191812		WH	0.75			X477	3
36	DELPHI	12191812		RD	0.75			X477	4
37	DELPHI	12191812		YE	0.75			X477	8
38	unused
39	unused
40	unused
41	DELPHI	12191812		YE	0.75			X474	2
42	DELPHI	12191812		BN	0.75			X476	2
43	DELPHI	12191812		RD	0.75			X477	7
44	unused
