X556

Tesla Part Number
1106842-00-A
Connector
MOLEX 98193-0001
Color
BK

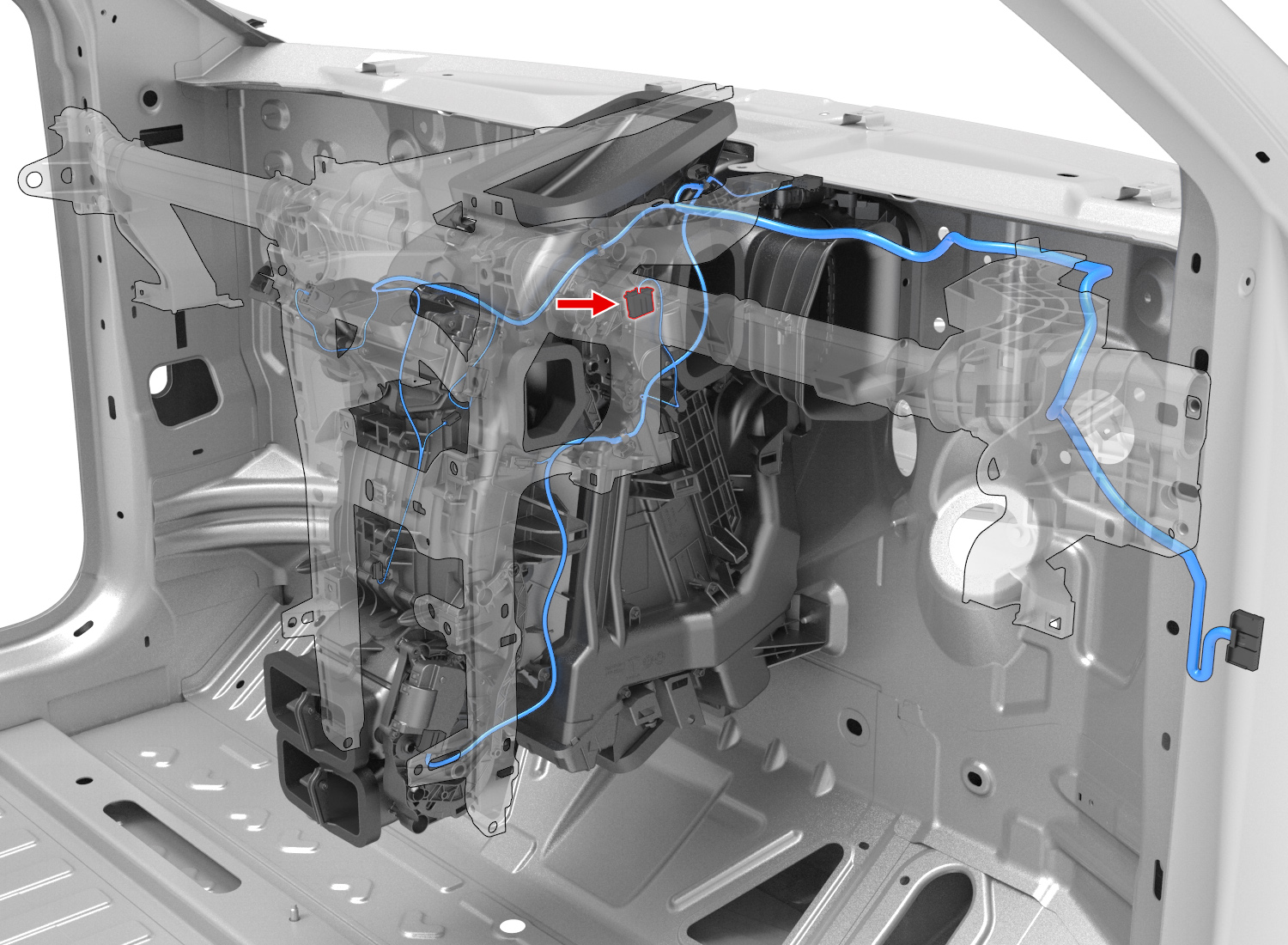

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX09865812110.64x0.64FBU0.35
2MOLEX09865812110.64x0.64FVT0.35X0583
3MOLEX09865812110.64x0.64FRD0.35
4unused
5MOLEX09865812110.64x0.64FGN/OG0.35X05825
6MOLEX09865812110.64x0.64FBU/GY0.35X05826
