X802A

Tesla Part Number
1898013-03-A
Connector
DELPHI 35582811
Color
BO

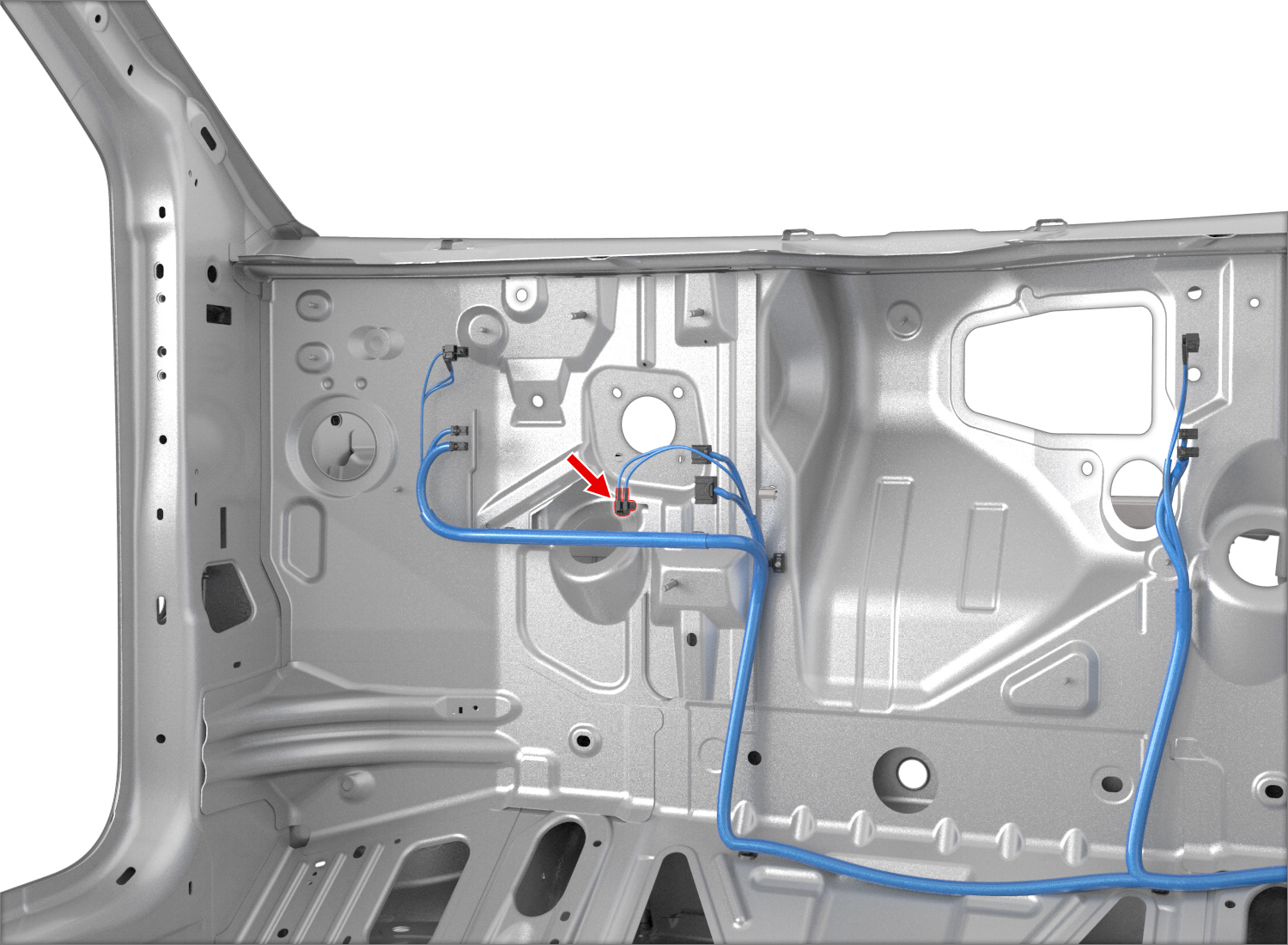

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI35227918COAXBKD302X8291
2DELPHI35227918COAXBKD302X8271
