X804A

Tesla Part Number
1099356-07-A
Connector
ROSENBERGER 59Z127-000-H
Color
VT

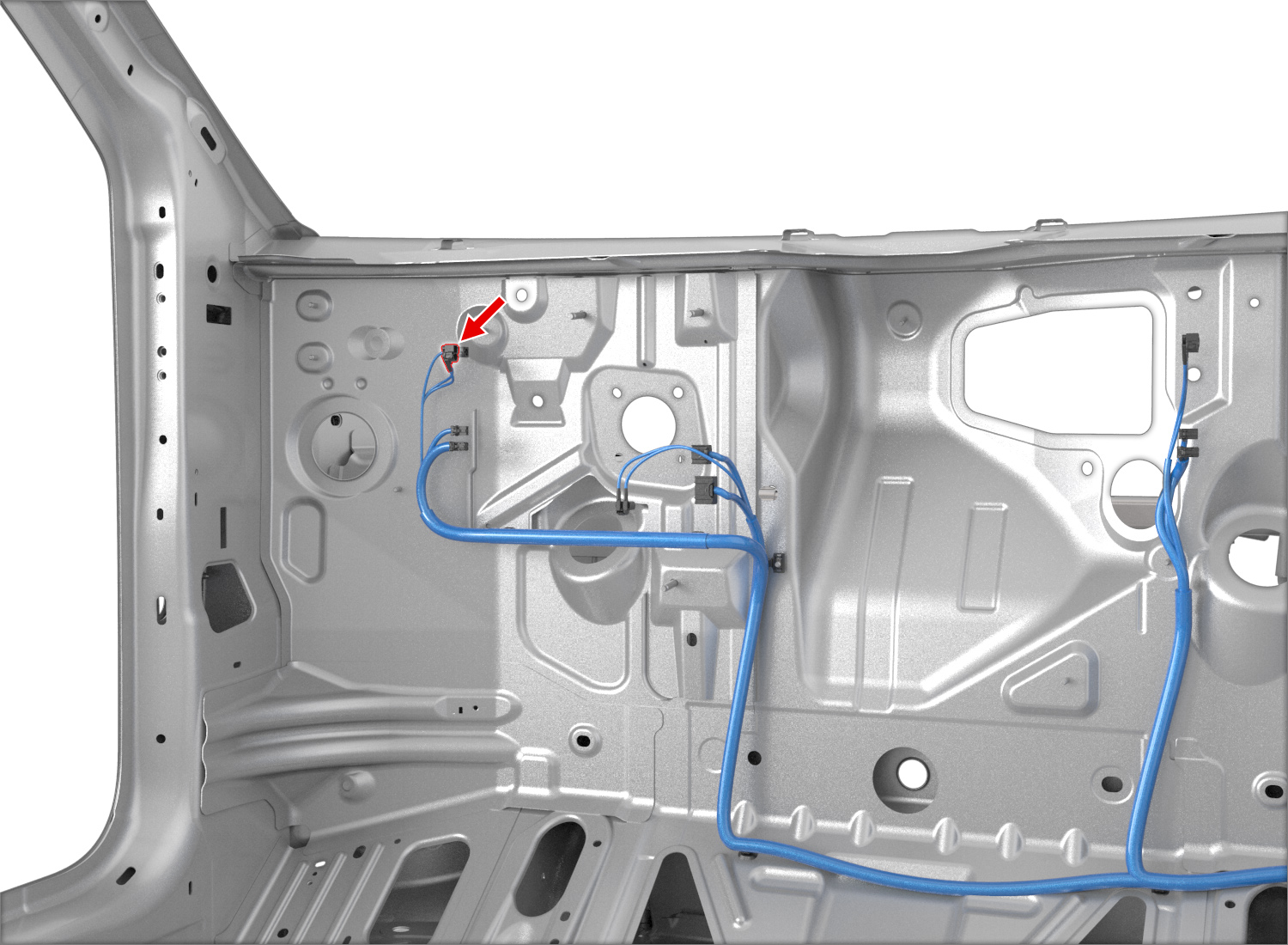

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K26A-1M4Z4COAXBKD302X8281
2ROSENBERGER59K26A-1M4Z4COAXBKD302X8261
