X817

Tesla Part Number
1815125-01-B
Connector
AMP 2-2330270-2
Color
WH

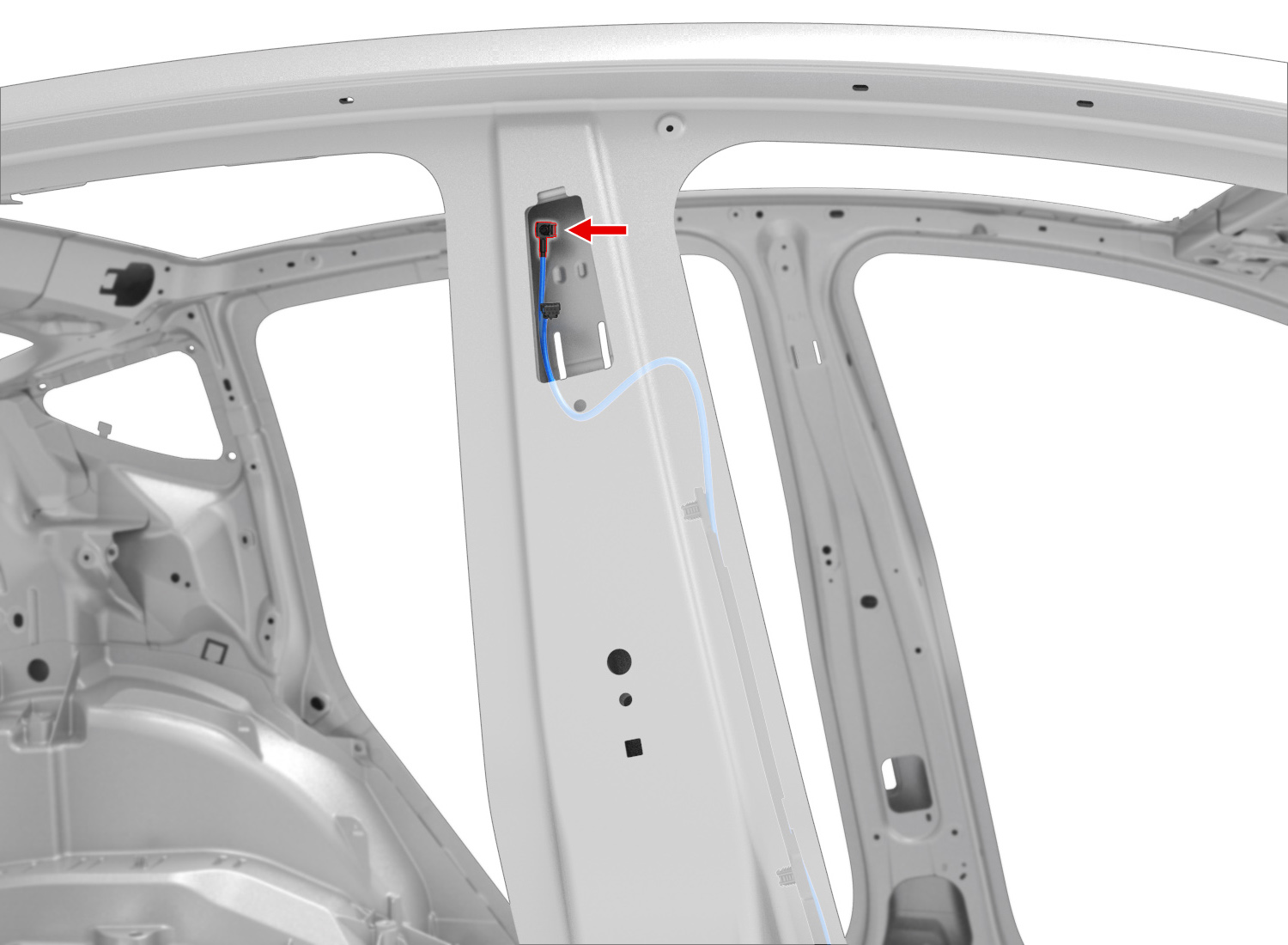

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2272590-4COAXBKD302X8384
