X870

Tesla Part Number
1739637-01-A
Connector
AMP 2-2357600-2
Color
WH

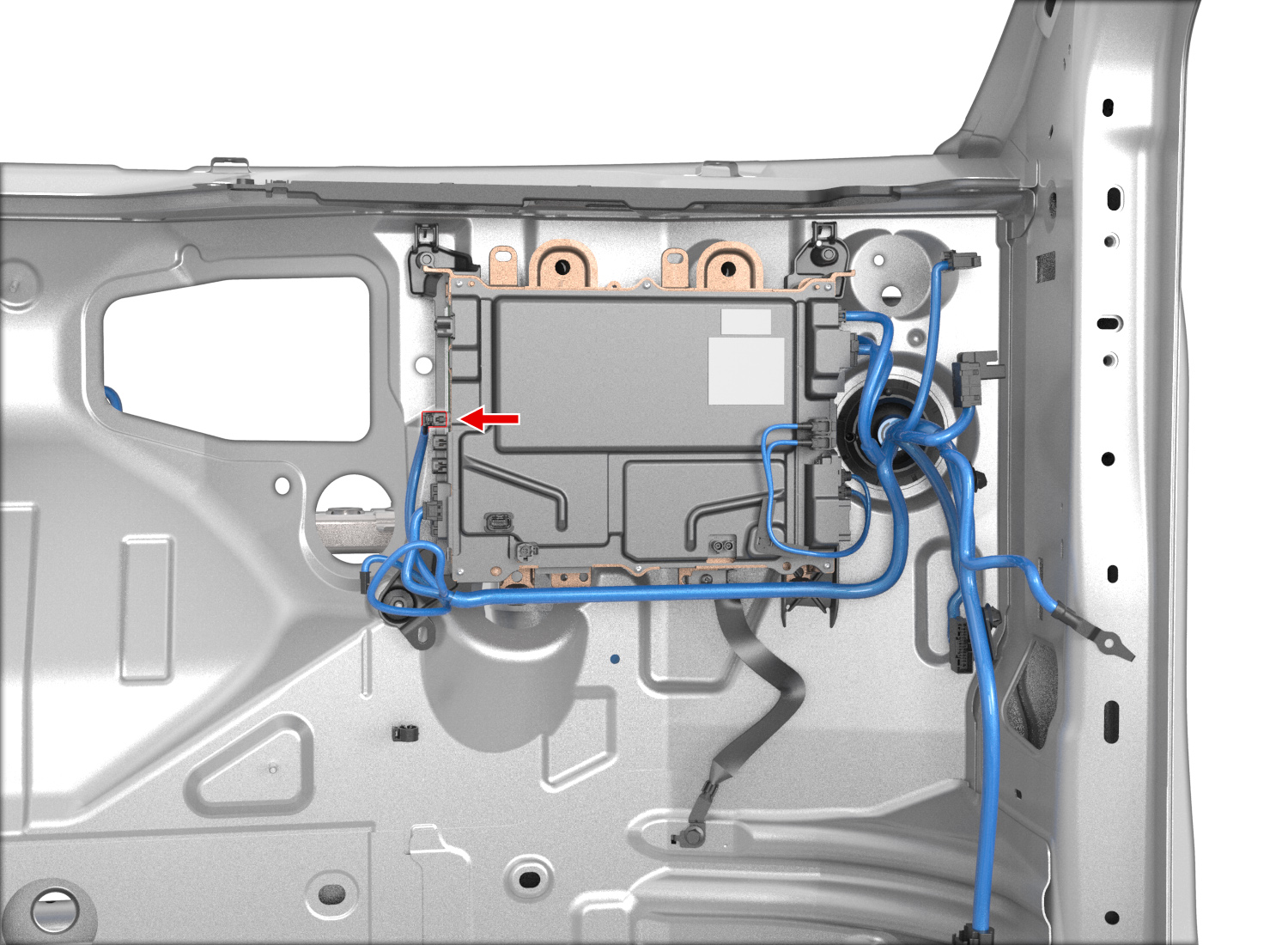

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2350600-1COAXBKD302X8241
2AMP2350600-1COAXBKD302X8231
