X891A

Tesla Part Number
1693518-02-A
Connector
AMP 2-2306868-3
Color
BU

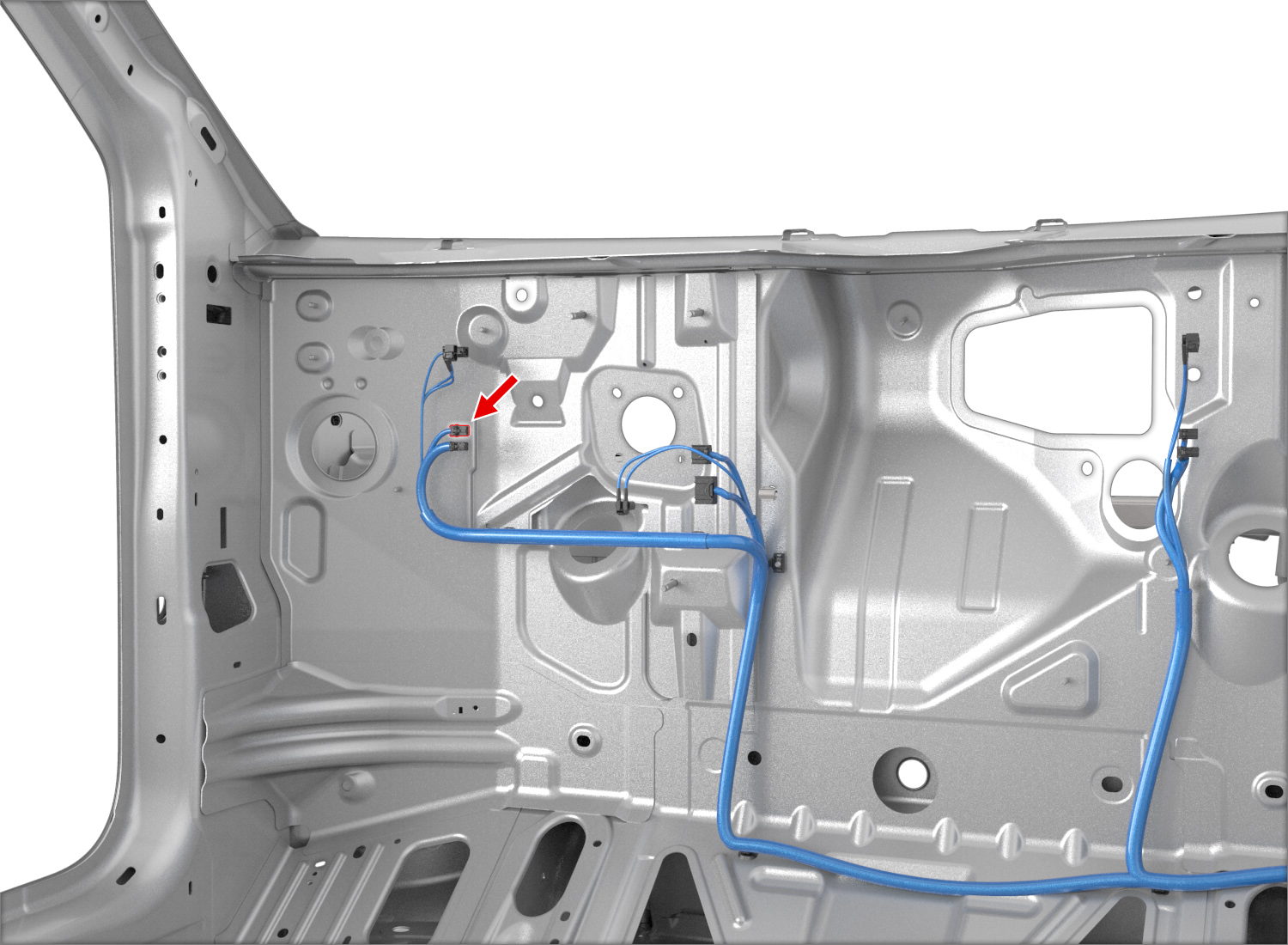

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2298488-1COAXBKD302X886M4
2AMP2298488-1COAXBKD302X886M3
