X908M

Tesla Part Number

1849227-01-B

Connector

KSE K30M31112

Color

BK

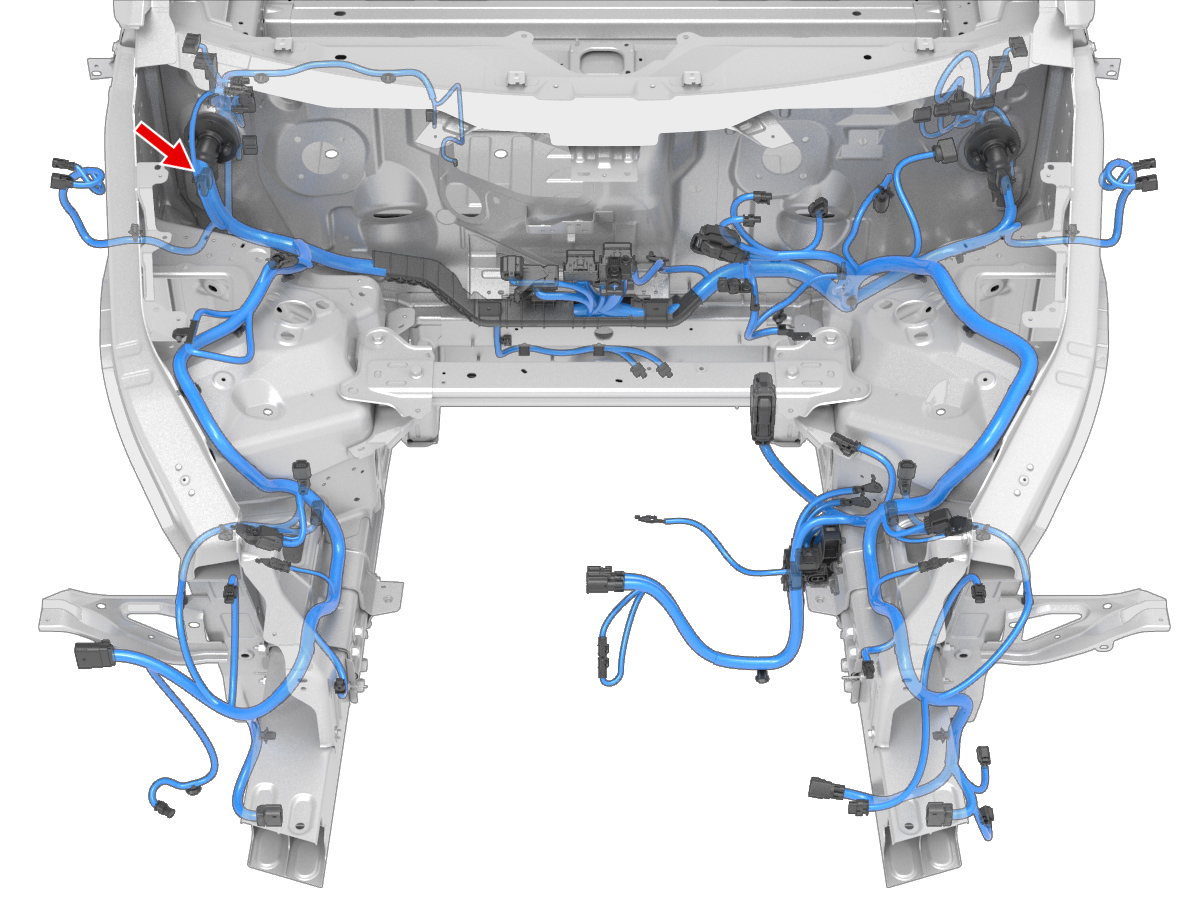

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	TN	2.00			X010	76
2	SUMITOMO	8100-3623	0.64x0.64M	YE/LTBU	0.35			X010	13
3	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X010	28
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X151	17
5	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X151	29
6	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X602	1
7	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50			X602	2
8	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X037	28
9	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X057	1
10	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X911F	7
11	SUMITOMO	8100-3623	0.64x0.64M	DKGN/WH	0.35
12	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35
13	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X173A	4
14	unused
15	unused
16	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X173A	7
17	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X541	1
18	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35
19	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35
20	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X151	31
21	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X151	18
22	unused
23	unused
24	unused
25	unused
26	SUMITOMO	8230-4924	1.5x0.6M	TN	1.00			X918M	1
