X909F

Tesla Part Number

1097116-00-A

Connector

DELPHI 33245684

Color

WH

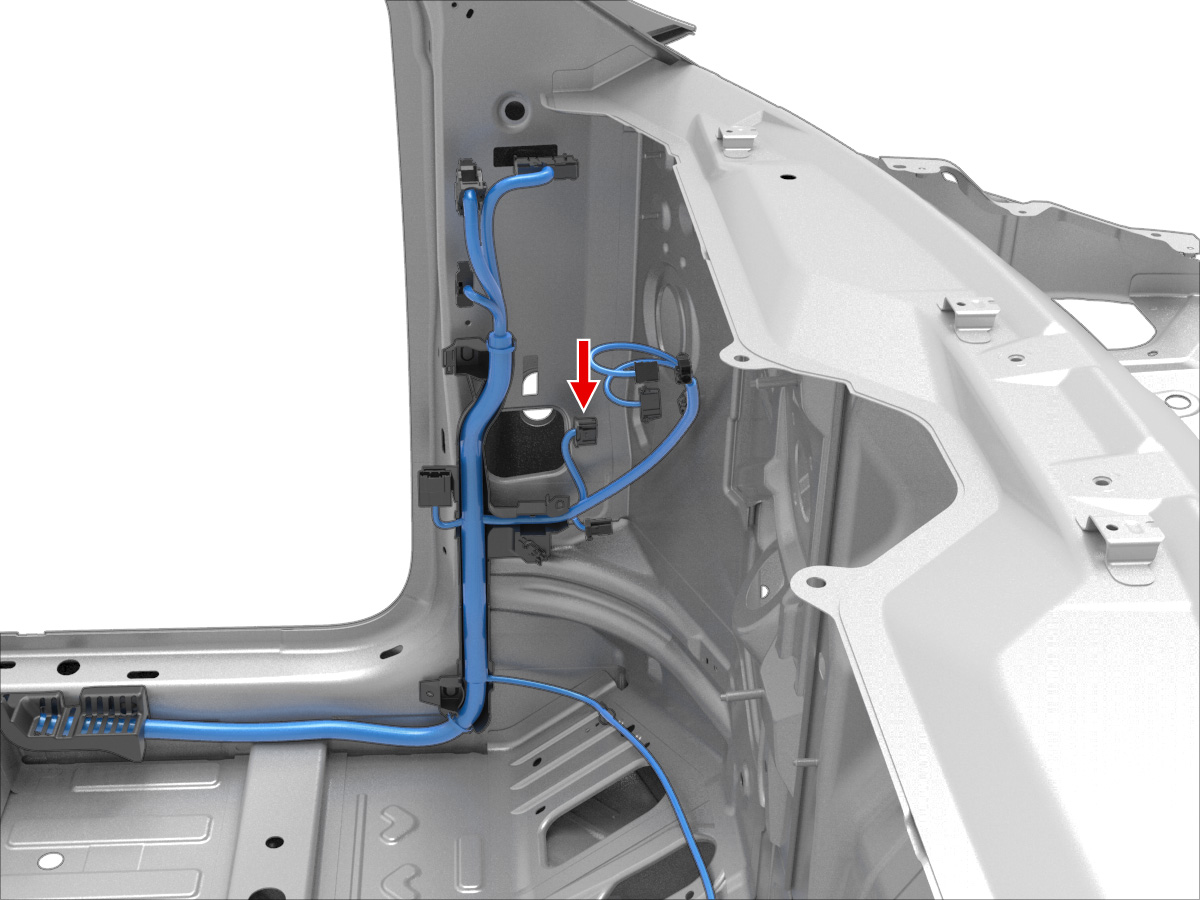

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	unused
5	unused
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X201	46
8	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	45
9	unused
10	unused
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	47
13	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X201	48
14	unused
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X031	29
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X031	30
18	unused
19	unused
20	unused
21	unused
22	unused
