X930F

Tesla Part Number

1849226-03-A

Connector

KSE K20F01204

Color

BU

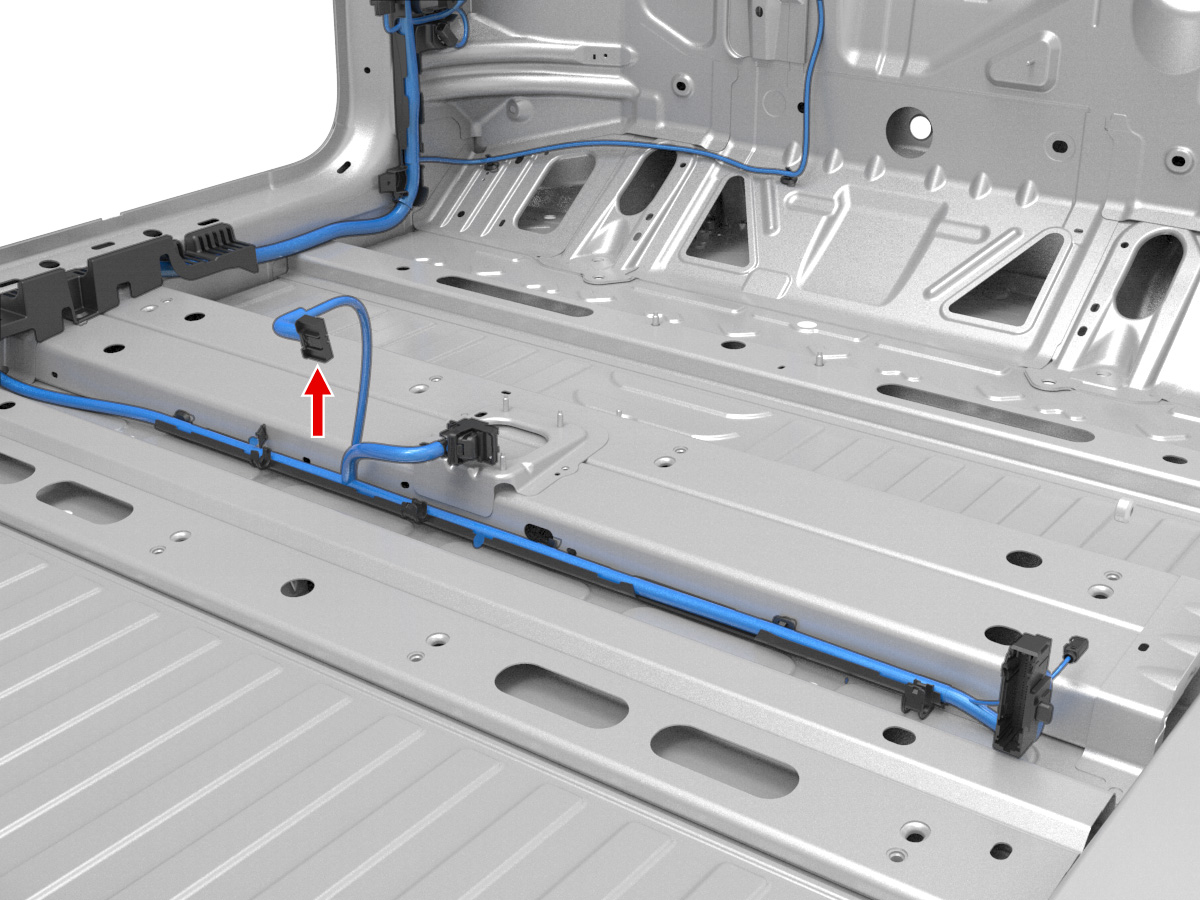

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X031	3
2	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X030A	9
3	unused
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X030A	24
5	unused
6	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35
7	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			G031	4
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X030A	10
9	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X935M	44
10	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X935M	45
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X493	3
13	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X493	6
14	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			G031	11
15	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X031	5
16	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X497	2
17	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X497	1
18	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X030A	1
19	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X030A	2
20	unused
21	unused
22	unused
23	unused
24	unused
25	unused
26	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00			X031	18
